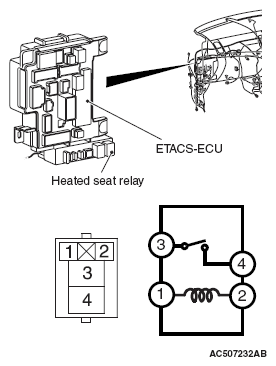

Inspection Of The Heated Seat Relay For Continuity
BATTERY VOLTAGE SPECIFICATIONS
| Battery voltage |
Terminal number |
Normal value |
| At no energization |
3-4 |
No continuity |
| At energization [terminal 2 (+) - terminal 1 (-)] |
Continuity exists (2 Ω or less). |
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
