Removal And Installation

CAUTION: To remove the front seat assembly of vehicle with side air bag, refer to SERVICE PRECAUTIONS and CURTAIN AIR BAG MODULE .

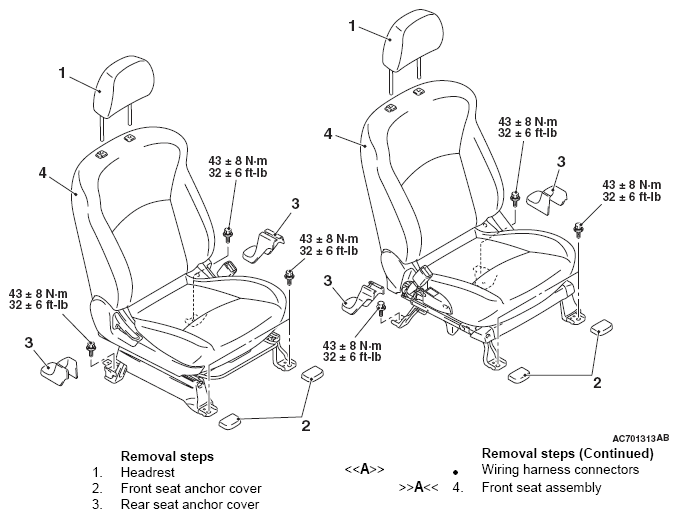

Fig 1: Identifying Front Seat Assembly Remove/Install Components
G05433443Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
