< Seat Frame Assembly >
< Seat Frame Assembly >

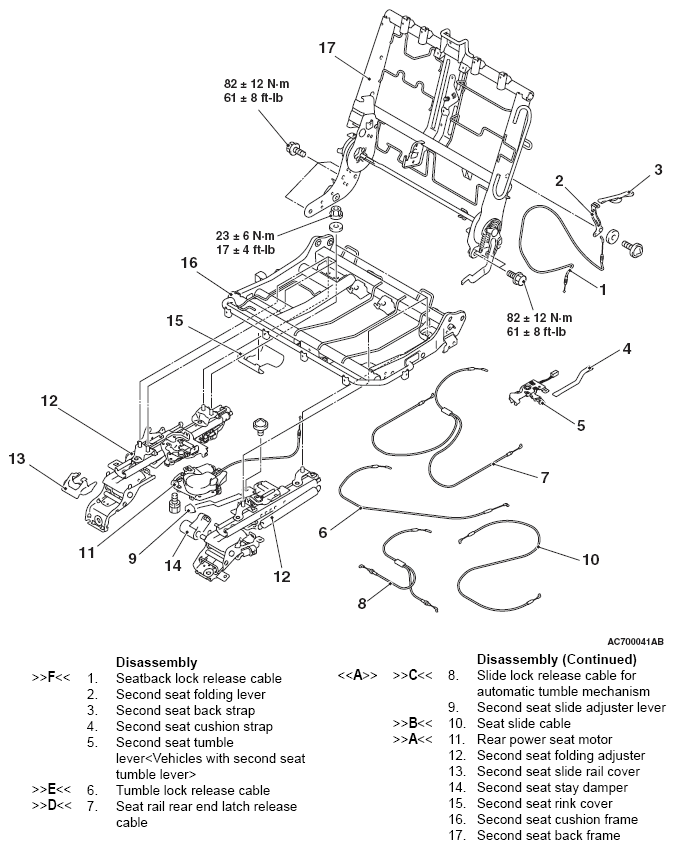

Fig 1: Exploded View Of Seat Frame Assembly Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
