< Front Passenger's Seat >

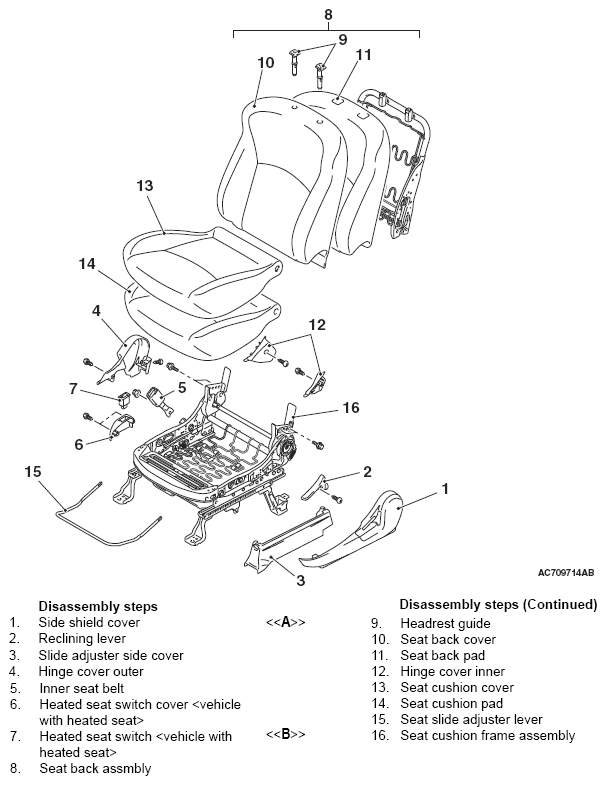

Fig 1: Identifying Seat Assembly Components (Passenger's Seat)

G05433448

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
