Disassembly And Assembly
>>
< RH Side >
< RH Side >

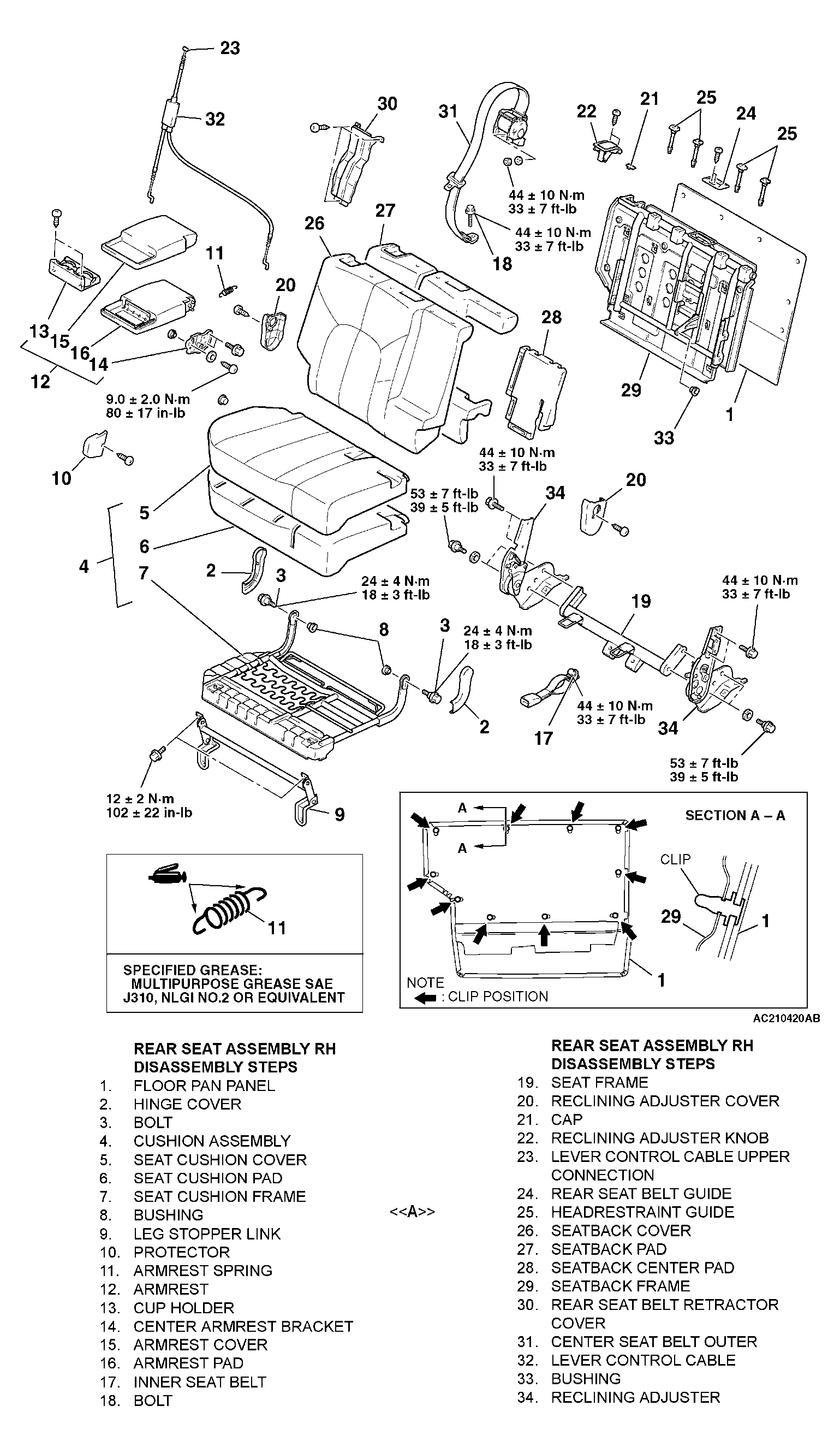

Fig 1: Exploded View Of Rear Seat Assembly (RH Side) With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
