Rear Seat Assembly
>>
Disassembly And Assembly
>>
< LH Side >
< LH Side >

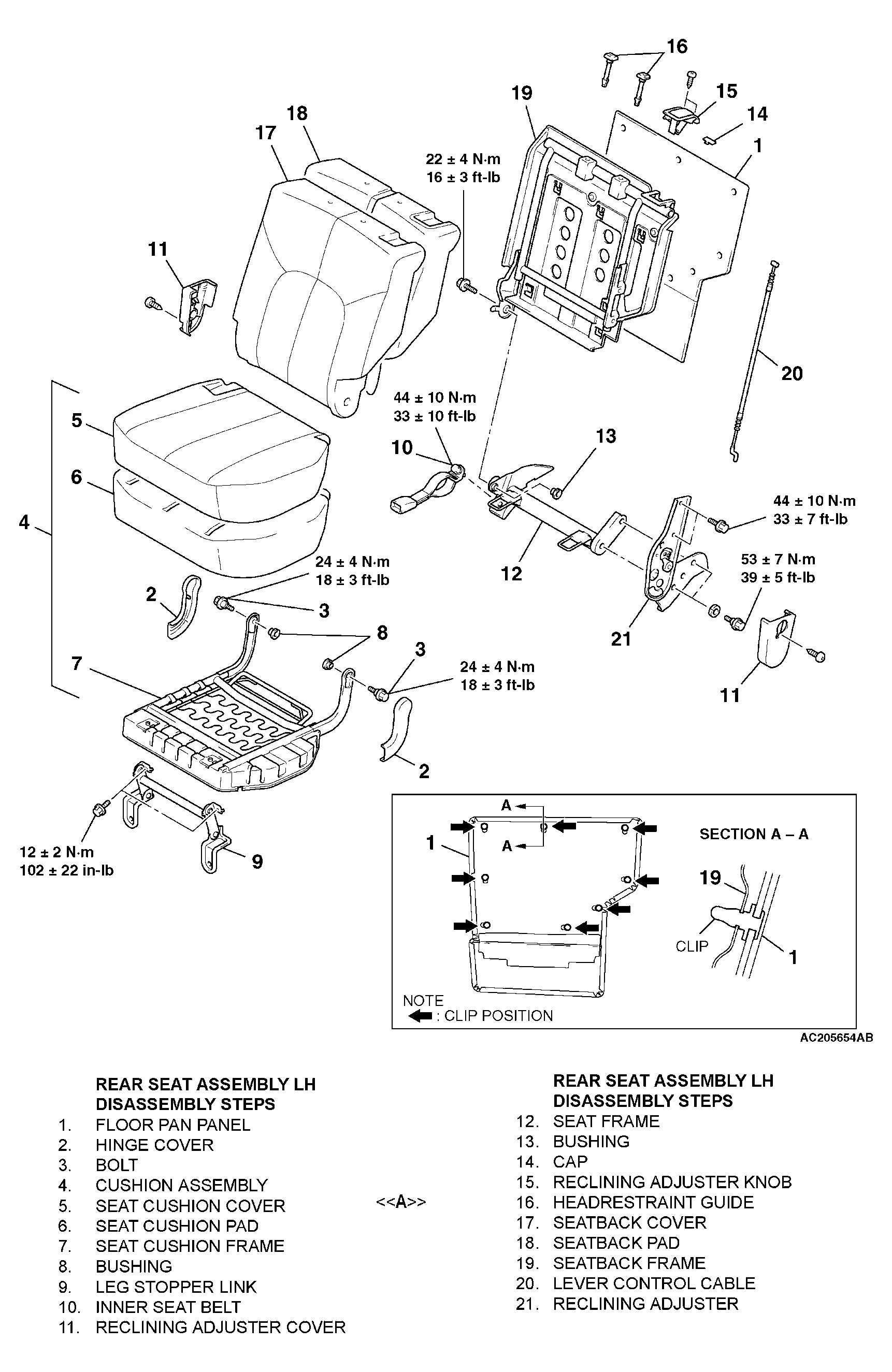

Fig 1: Exploded View Of Rear Seat Assembly (LH Side) With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
