Operation Check Of Power Seat Motor

  1. Disconnect the connector of each motor.
  2. Check that when the battery is directly connected to the motor terminal, the motor turns smoothly and each adjusting mechanism operates as stated below for each motor:
    1. Connect the battery power supply to the terminal 1 and ground the terminal 2 for the rear reclining side, front slide side.
    2. Connect the battery power supply to the terminal 2 and ground the terminal 1 for the front reclining side, rear slide side.
    3. Connect the battery power supply to the terminal 2 and ground the terminal 3 for the front height down side and connect the battery power supply to the terminal 3 and ground the terminal 2 for the front height up side.
    4. Connect the battery power supply to the terminal 3 and ground the terminal 4 for the rear height up side and connect the battery power supply to the terminal 4 and ground the terminal 3 for the rear height down side.
  3. If abnormality was found, check the power seat adjuster assembly.

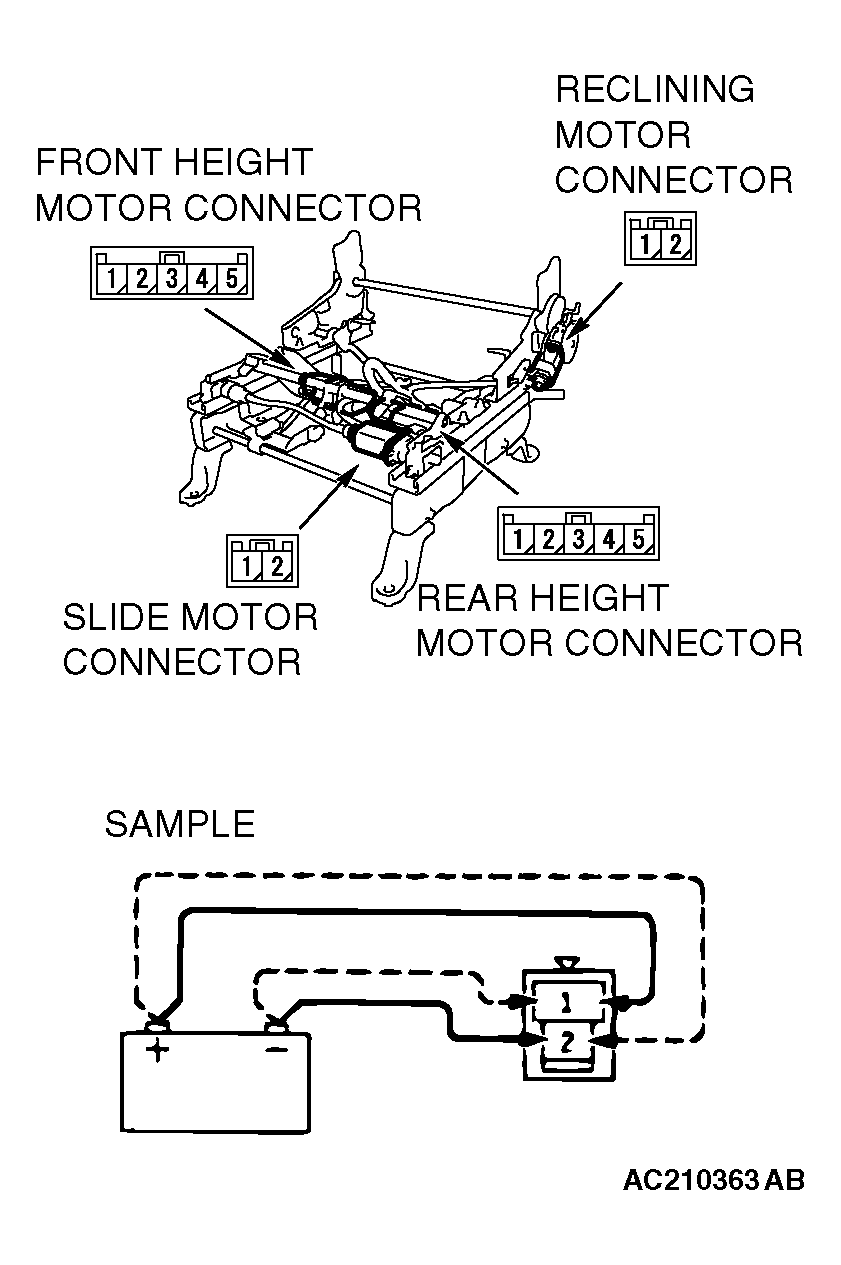

    Fig 1: Checking Power Seat Motor Operation
    G04288609Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
