Heated Seat Relay Continuity Check

TESTING HEATED SEAT RELAY

BATTERY VOLTAGE	TESTER CONNECTION	SPECIFIED CONDITION
Not applied	1-4	Open circuit
Connect terminal 2 to the positive battery terminal Connect terminal 3 to the negative battery terminal	1-4	Less than 2 ohms

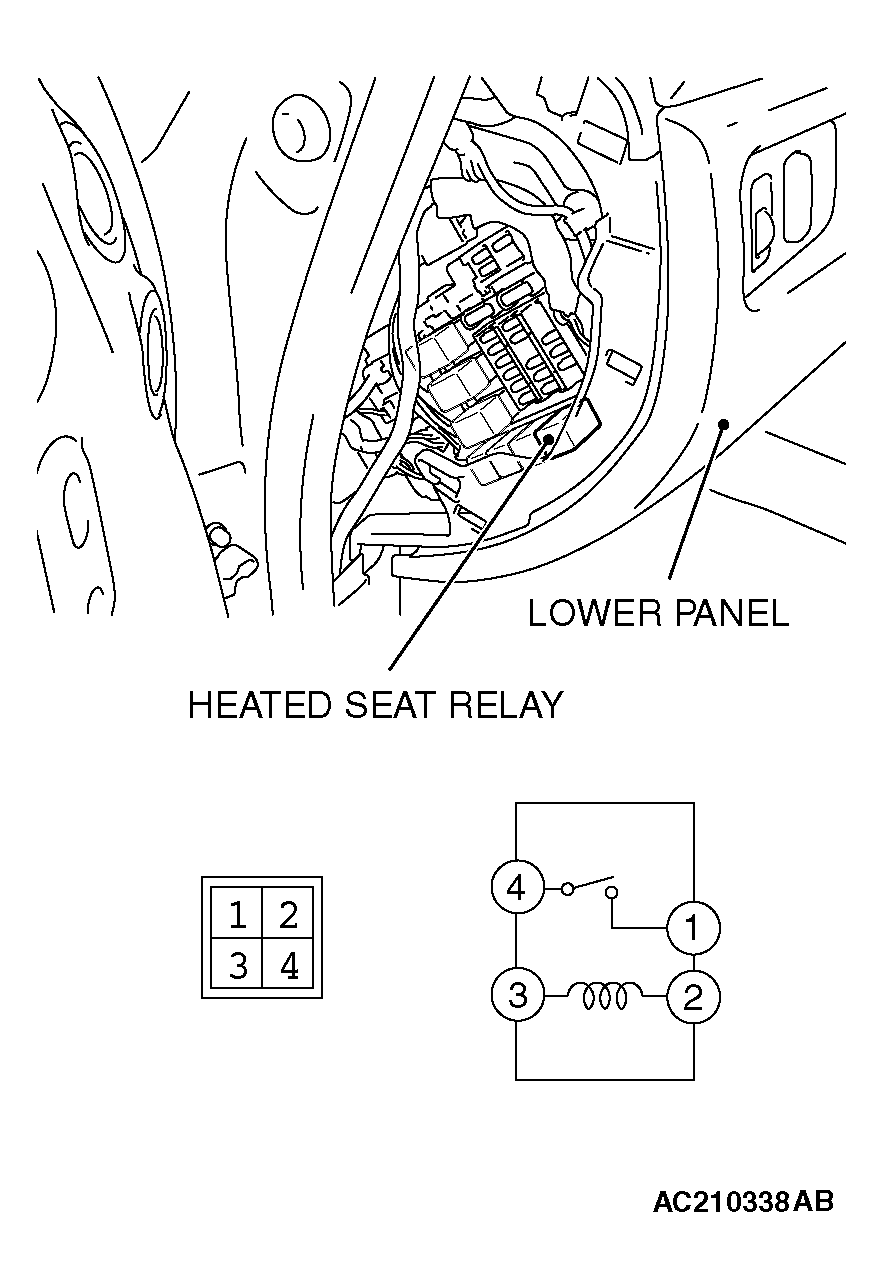

Fig 1: Identifying Heated Seat Relay Terminal

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
