< RH Side >

WARNING: < Vehicles with advanced air bag >
  • Never attempt to disassemble or repair the occupant classification-ECU or the occupant classification sensor. If faulty, replace it.
  • Do not drop or subject the occupant classification-ECU and occupant classification sensor to impact or vibration. If denting, cracking, deformation, or rust are discovered in the occupant classification-ECU or the occupant classification sensor, replace it with a new occupant classification-ECU or the occupant classification sensor.

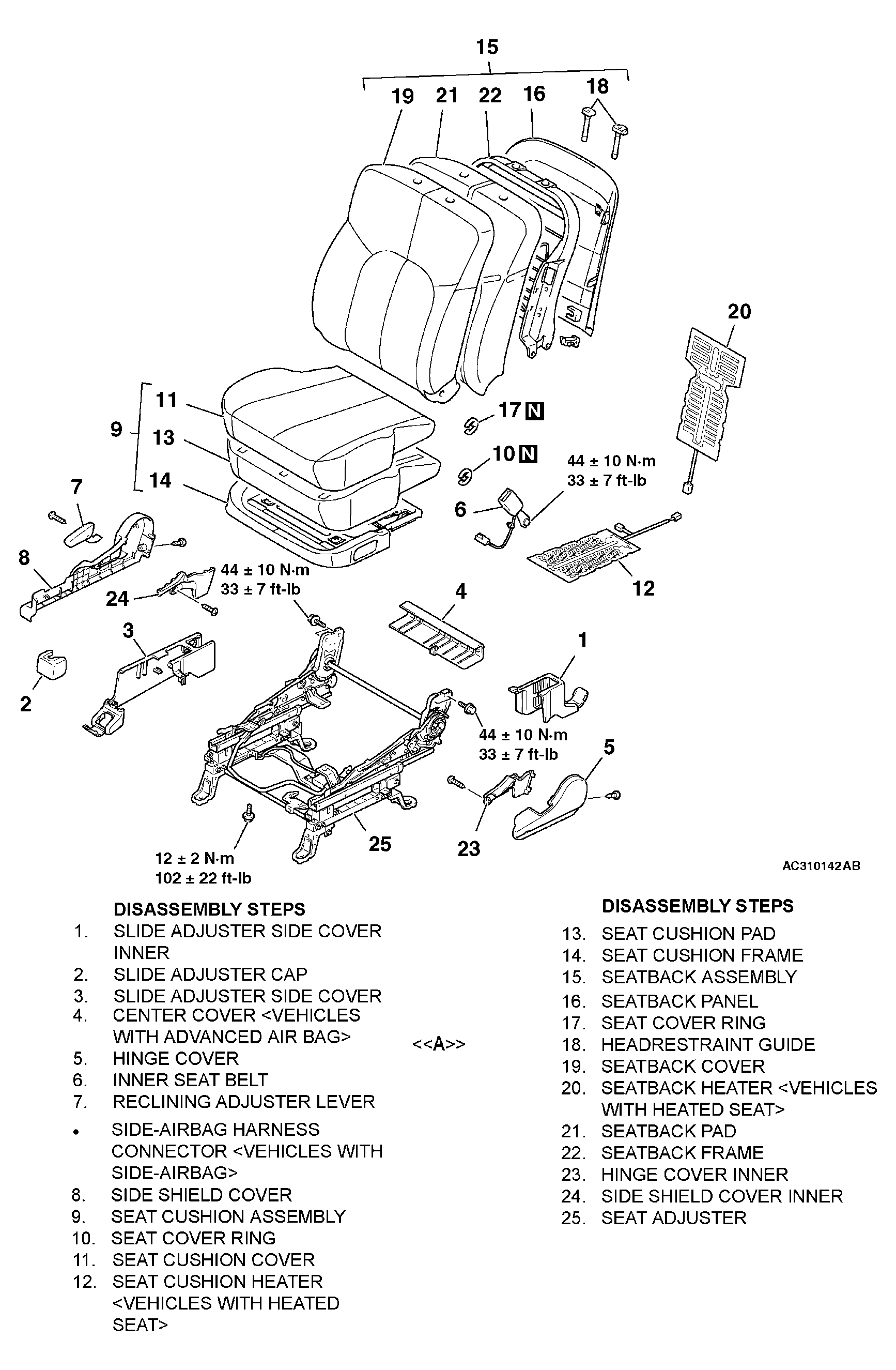

    Fig 1: Exploded View Of Front Seat Assembly (RH Side) With Torque Specifications
    G04288611Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
