< LH Side >

WARNING: Never attempt to disassemble or repair the seat slide sensor. If faulty, replace it. < Vehicles with advanced air bag >

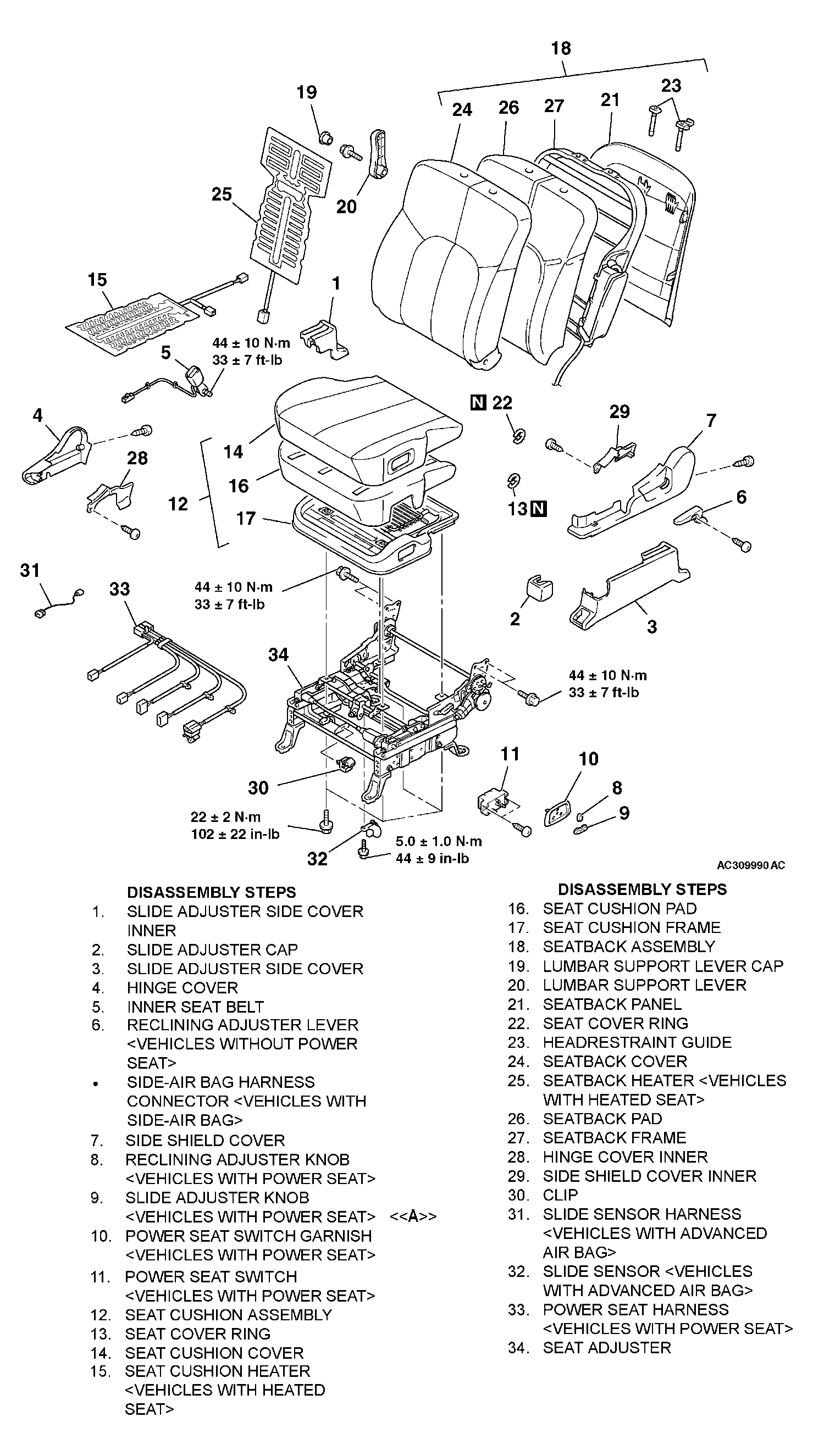

Fig 1: Exploded View Of Front Seat Assembly (LH Side) With Torque Specifications
G04288610Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
