DTC B16A5: Turn-signal light (RH) short circuit: Notes

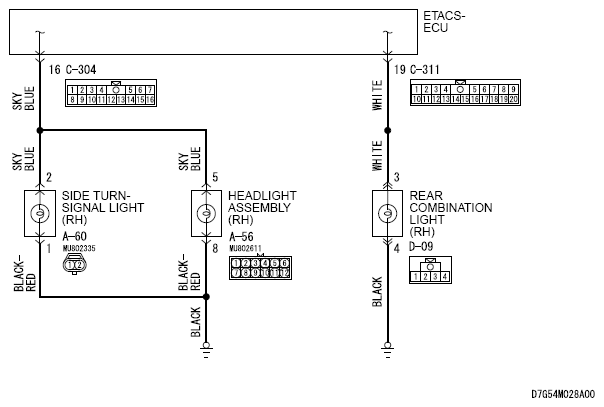

Fig 1: Turn-Signal Light (RH) Circuit Diagram
G04873526Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 2: Identifying Connector A-60 And A-56
G04873527Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 3: Identifying Connector C-304 And C-311
G04873519Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 4: Identifying Connector D-09
G04873529Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
