Ignition key cylinder illumination light does not illuminate/extinguish normally. < vehicles with KOS >: Notes

CAUTION: Whenever the ECU is replaced, ensure that the input and output signal circuits are normal.

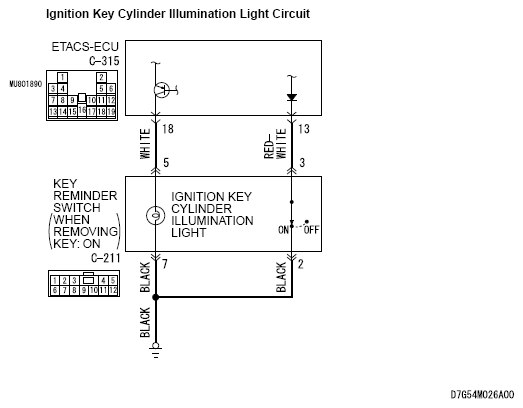

Fig 1: Ignition Key Cylinder Illumination Light Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Identifying Key Reminder Switch Connector C-211

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 3: Identifying ETACS-ECU Connector C-315

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
