Inspection Procedure 8: ETACS-ECU does not receive any signal from the rear door switch (RH): Notes

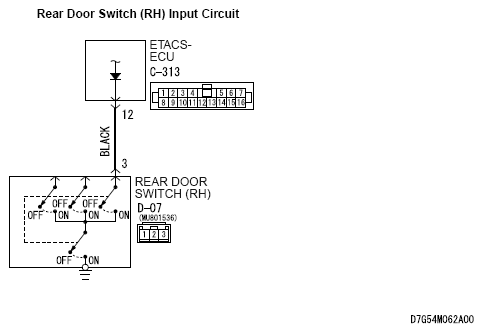

Fig 1: Rear Door Switch (RH) Input Circuit Diagram
G04873818Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 2: Identifying ETACS-ECU Connector C-313
G04873810Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 3: Identifying Rear Door Switch (RH) Connector D-07
G04873820Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
