Horn Relay Check

TESTER CONNECTION AND SPECIFIED CONDITION

Battery voltage Tester connection Specified condition
Not energized 3 - 4 No continuity
With current supply [terminal 1 (+), terminal 2 (-)] Continuity exists (2 Ω or less)

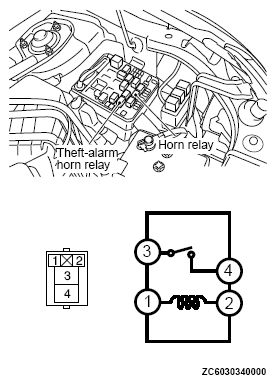

Fig 1: Checking Horn Relay
G04873933Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
