Headlight Relay (Low) Check

HEADLIGHT RELAY TERMINALS REFERENCE

Battery voltage Terminal number Normal conditions
Not energized 3 - 4 No continuity
With current supply [terminal 4 (+), terminal 1 (-)] Continuity exists (2 Ω or less)

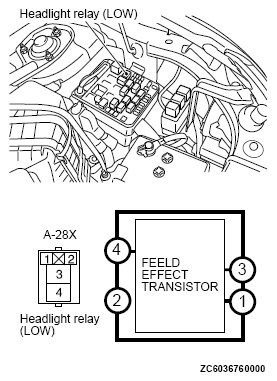

Fig 1: Identifying Headlight Relay (Low) Connector Terminals
G04873705Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
