Fog Light Relay Check

FOG LIGHT RELAY TERMINALS REFERENCE

Battery voltage	Terminal number	Normal condition
Not energized	3 - 4	No continuity
With current supply [terminal 1 (+), terminal 2 (-)]	3 - 4	Continuity exists (2 Ω or less)

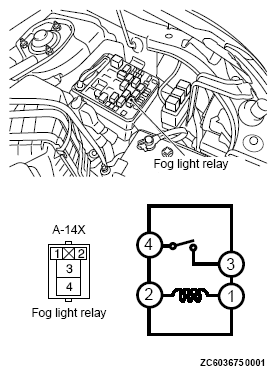

Fig 1: Checking Continuity Between Fog Light Relay Terminals

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
