Inspection Procedure 4: The headlight automatic leveling warning is not displayed: Notes

CAUTION: Before replacing the ECU, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

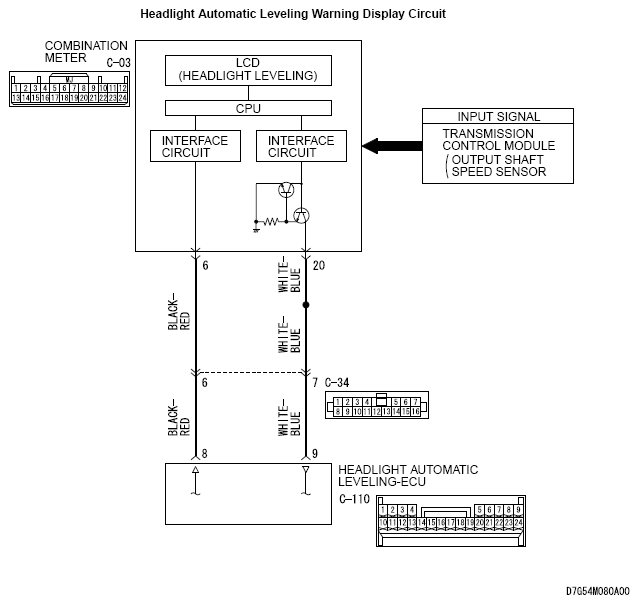

Fig 1: Headlight Automatic Leveling Warning Display Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Identifying Connector C-03

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 3: Identifying Connector C-110

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 4: Identifying Connector C-34

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
