Inspection Procedure 3: Either automatic leveling does not operate: Notes

CAUTION: Before replacing the ECU, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

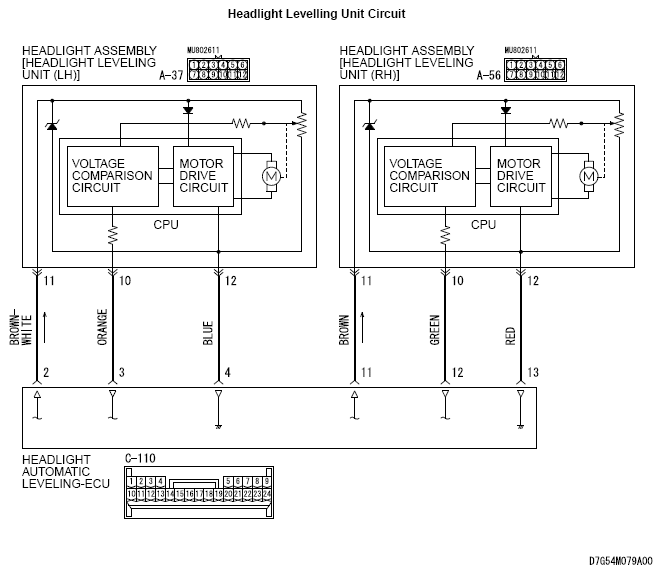

Fig 1: Headlight Levelling Unit Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Identifying Connector A-56

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 3: Identifying Connector A-37

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 4: Identifying Connector C-110

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
