DTC 24: Pitch angle abnormality: Notes

CAUTION: Before replacing the ECU, ensure that the communication circuit is normal.

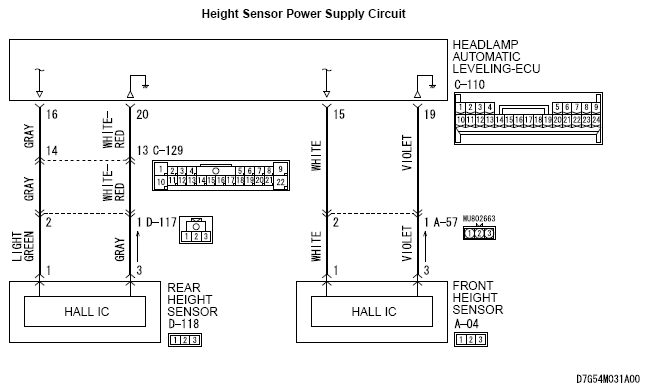

Fig 1: Height Sensor Power Supply Circuit Diagram
G04873582Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 2: Identifying Connector C-110
G04873575Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 3: Identifying Connector A-04
G04873590Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 4: Identifying Connector D-118
G04873591Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
