Rear Window Defogger Relay Check

RESISTANCE SPECIFICATION

Battery voltage Terminal number Normal condition
At no energisation 3 - 4 No continuity
With current supply [terminal 1 (+), terminal 2 (-)] Continuity exists (2 Ω or less)

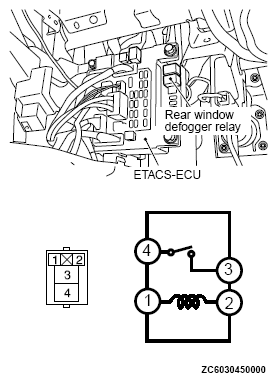

Fig 1: Checking Rear Window Defogger Relay
G04873976Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
