Nominal Resistance Of The Fuel Level Sensor
When float of the fuel level sensor is in stopper positions F and E, ensure that resistance between the fuel level sensor terminal and earth terminal is within the standard value.
STANDARD VALUE SPECIFICATION
| Float position | Gauge resistance value (ohms) |
|---|---|
| Stopper position "F" | 13.0 ± 1.0 |
| Stopper position "E" | 120.0 ± 1.0 |
When the float is moved slowly between stopper positions "F" and "E", ensure that the resistance is smoothly changing.

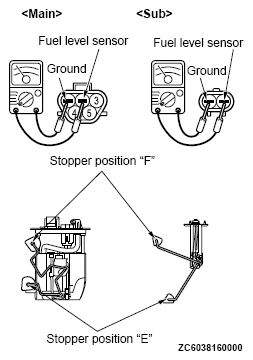

When float of the fuel level sensor is in stopper positions F and E, ensure that resistance between the fuel level sensor terminal and earth terminal is within the standard value.
STANDARD VALUE SPECIFICATION
| Float position | Gauge resistance value (ohms) | |
|---|---|---|
| Main | Sub | |
| Stopper position "F" | 6.5 ± 1.0 | 6.5 ± 1.0 |
| Stopper position "E" | 44.7 ± 1.0 | 75.3 ± 1.0 |
When the float is moved slowly between stopper positions "F" and "E", ensure that the resistance is smoothly changing.
