Home >> Mitsubishi >> 2007 >> Outlander ES >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Chassis Electrical >> Combination Meter >> Diagnosis >> Trouble Symptom Procedures >> Inspection Procedure 1: Power supply circuit check >> Notes

Inspection Procedure 1: Power supply circuit check: Notes

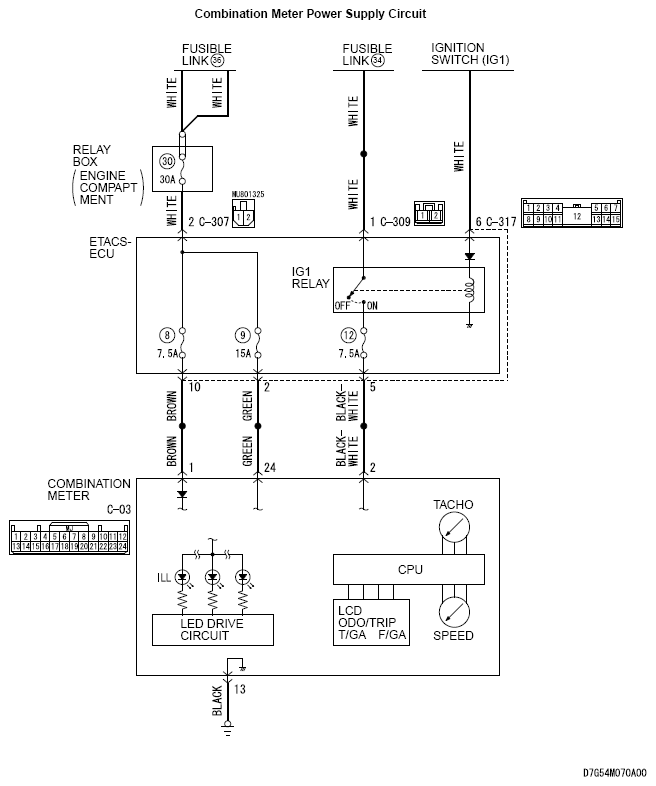

Fig 1: Combination Meter Power Supply Circuit Diagram
G04873421Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
