Ac Power Supply

The AC power supply which can be used as power supply for home electric appliances has been installed to the rear floor console. < Option >

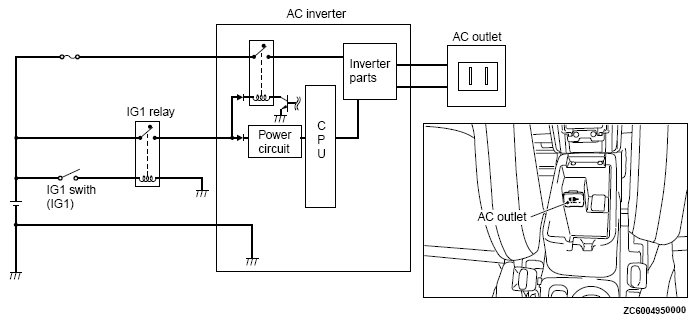

Fig 1: Accessory Socket Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

• With the AC inverter, the DC power supply of the vehicle battery can be inverted into the AC power supply and provided from the AC outlet.
• The electric appliance whose power consumption is 100 W or less when 115 V AC is supplied can be used.
  NOTE: The home appliance whose power consumption is 100 W or less but requires a large amount of power at startup (such as TV, refrigerator, vacuum cleaner) may not be used.
• To prevent damages caused by overcurrent, overvoltage, low voltage, and overheat* when the power is supplied, the protection function to stop the power supply and prevention function against dead battery have been provided.
  NOTE: *: When the inside of the vehicle is held at high temperature (35°C or more) for a long time (for example under the scorching sun), if the AC power supply is used with the vehicle parked, the operation may automatically stop to prevent the inverter unit from being overheated. After the power supply is cut off, when the AC inverter temperature decreases, the
  NOTE: power automatically returns to ON.
• When the power supply stops, turn the ignition switch to "LOCK" (OFF) position once to inhibit the power supply to the inverter. After that, turn the ignition switch to "ON" again for return.
