Removal And Installation

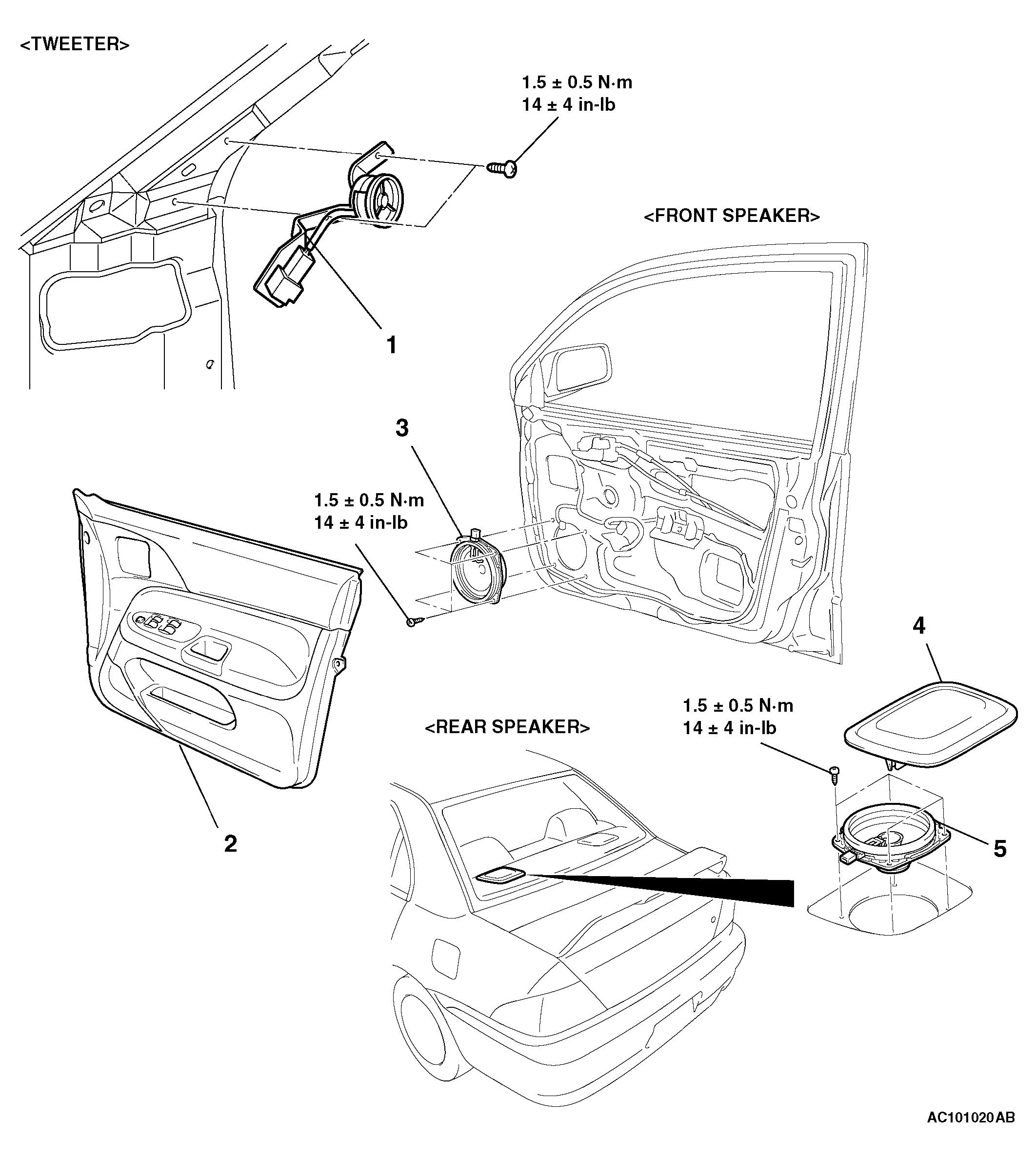

Fig 1: Removing/Installing Speaker - Tweeter
G04279009Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

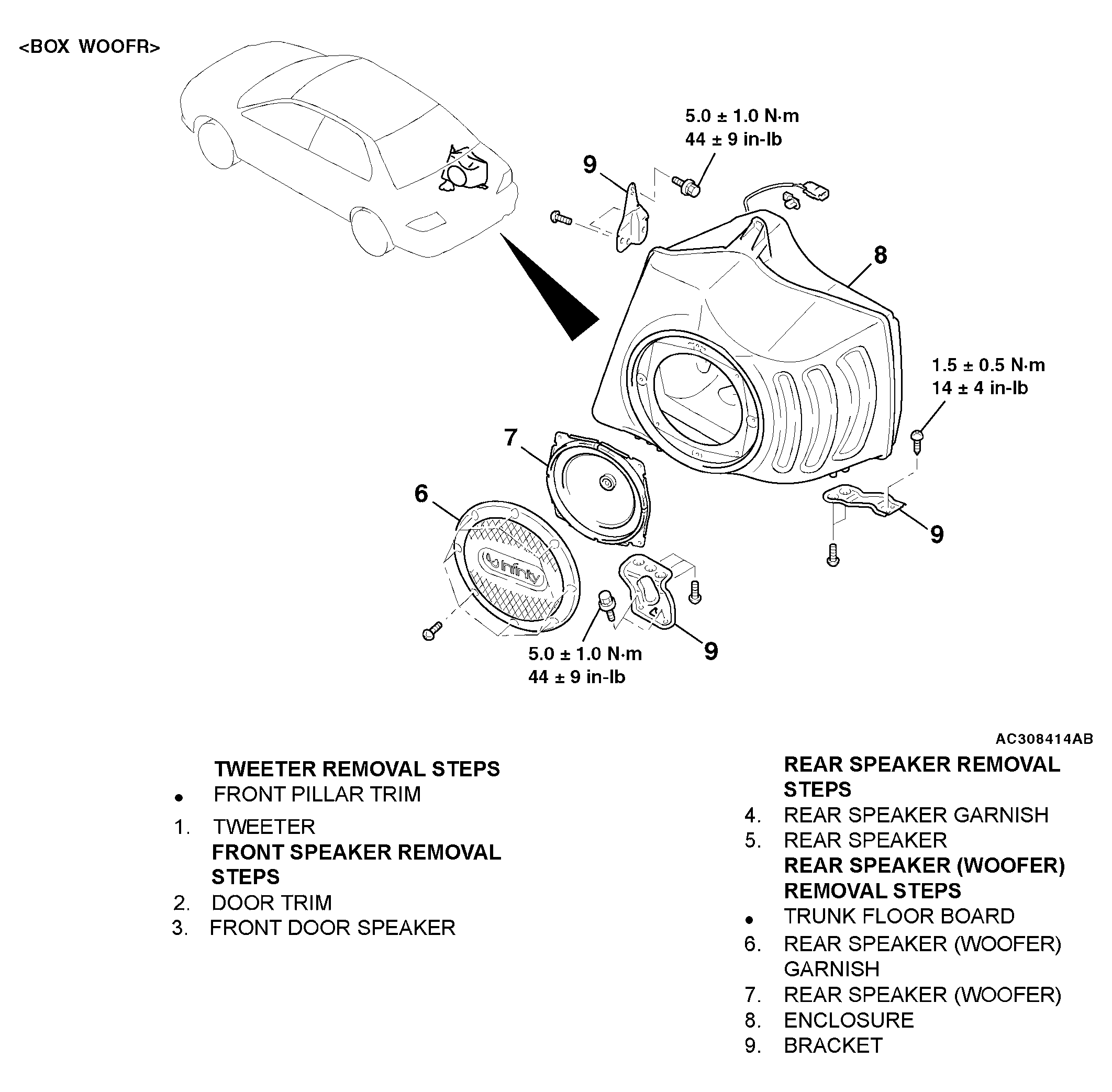

Fig 2: Removing/Installing Speaker - Box Woofer
G04279010Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
