Rheostat Check

  1. Connect a test light (40 W) as shown in the illumination.
  2. Operate the rheostat, If the luminance of the light changes steadily with no flashing, the rheostat is functioning normally.

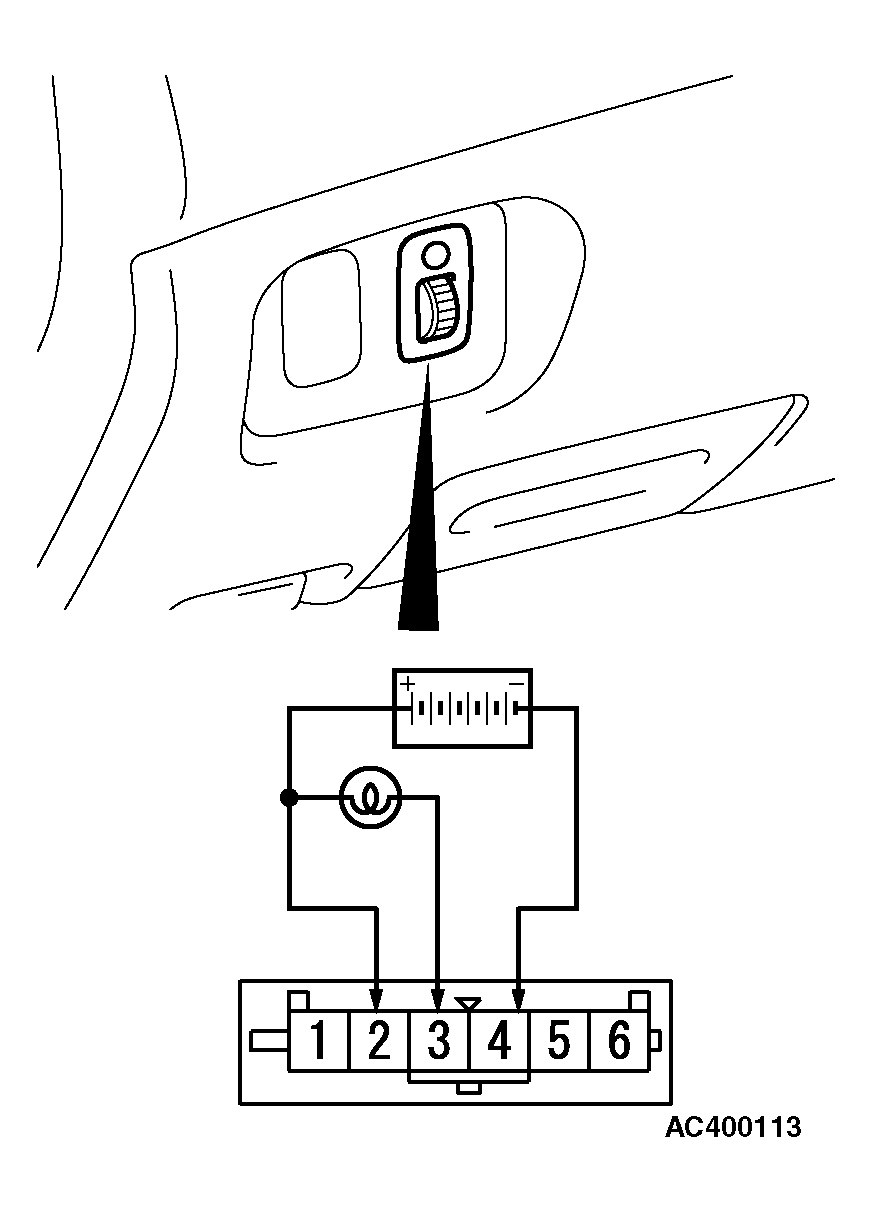

Fig 1: Connecting Test Light (40 W) To Rheostat
G04278896Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
