Special Tools
SPECIAL TOOLS CHART
| TOOL | TOOL NUMBER AND NAME | SUPERSESSION | APPLICATION |
|---|---|---|---|

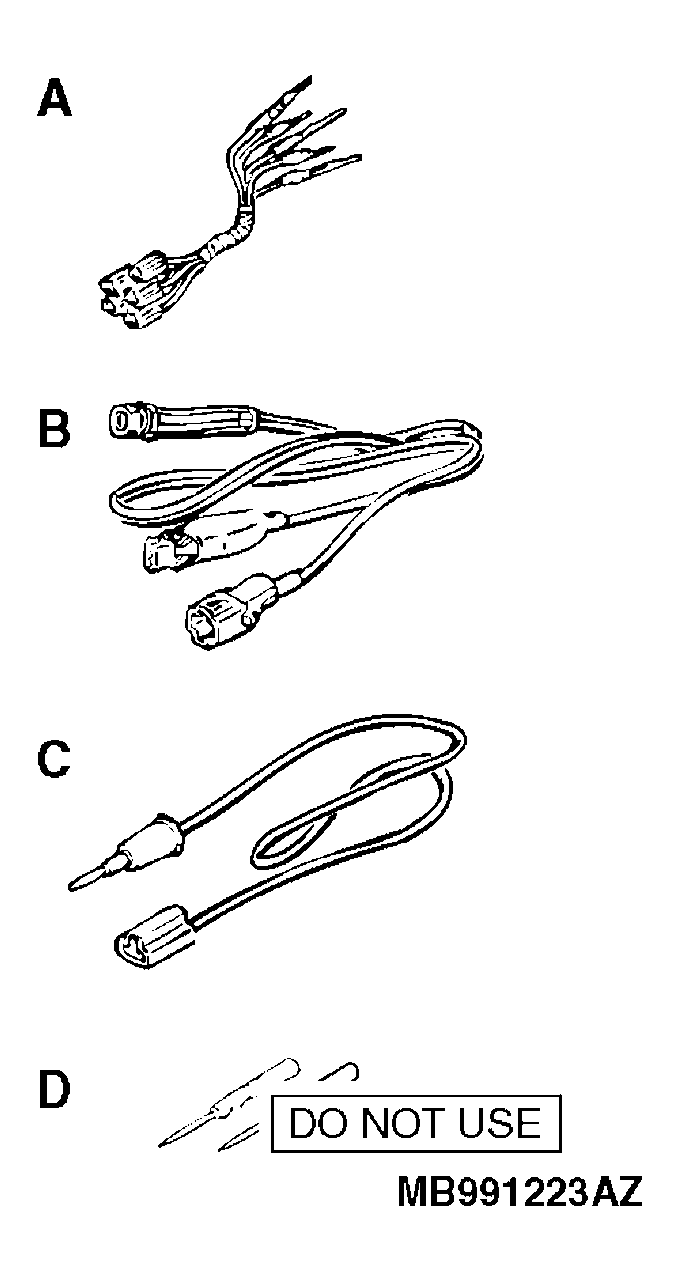

| MB991223 A: MB991219 B: MB991220 C: MB991221 D: MB991222 Harness set A: Test harness B: LED harness C: LED harness adaptor D: Probe |
General service tools | Making voltage and resistance measurement during troubleshooting A: Connector pin contact pressure inspection B: Power circuit inspection C: Power circuit inspection D: Commercial tester connection |
|
| MB992006 Extra fine probe | General service tool | Making voltage and resistance measurement during troubleshooting |
