INSPECTION PROCEDURE 3: No Sound from One Speaker. < Vehicles with Amplified: Notes

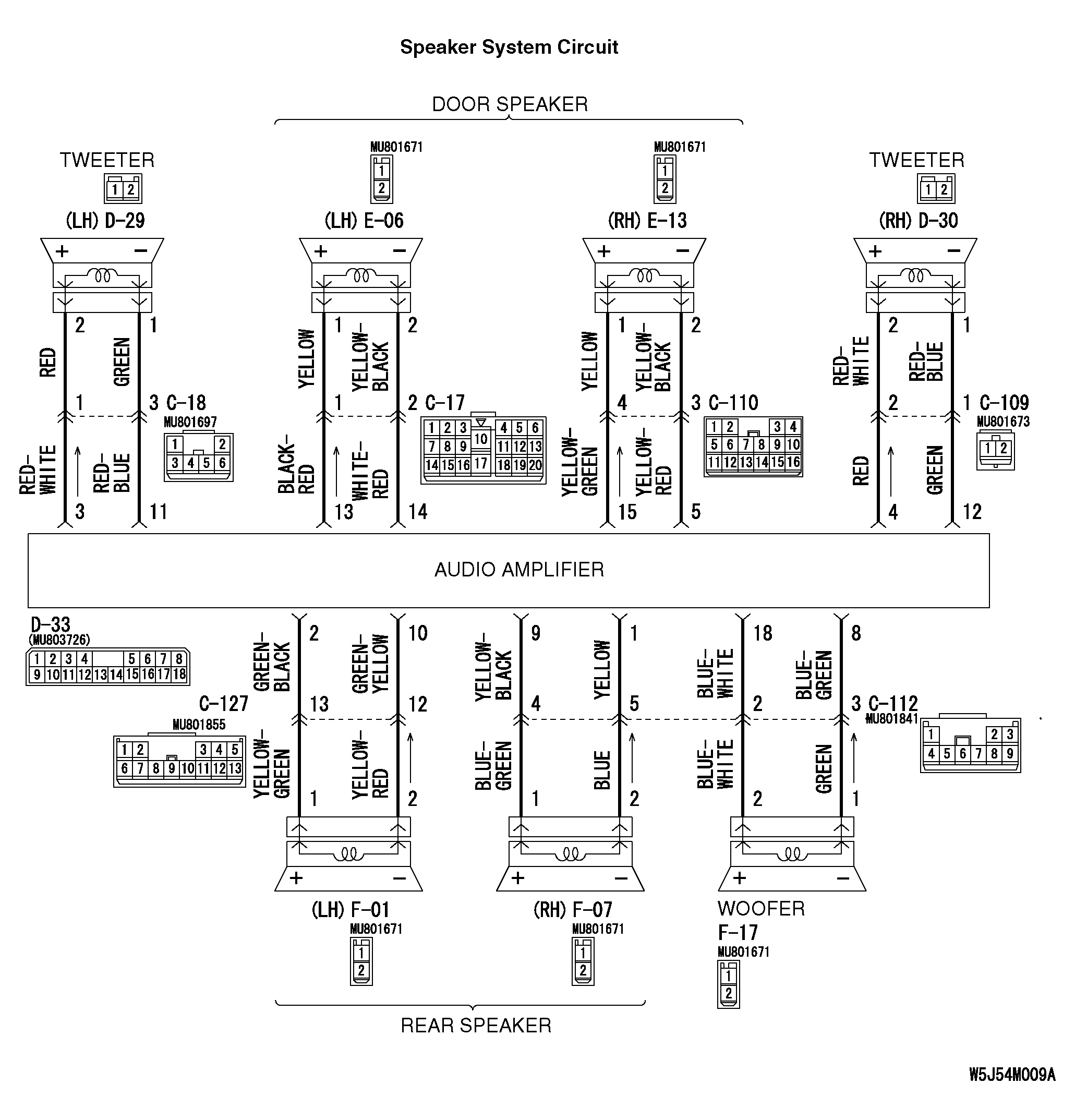

Fig 1: Speaker System - Circuit Diagram (1 Of 2)

G04278955

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
