INSPECTION PROCEDURE 2: No Sound from One Speaker. < Vehicles without Amplified: Notes

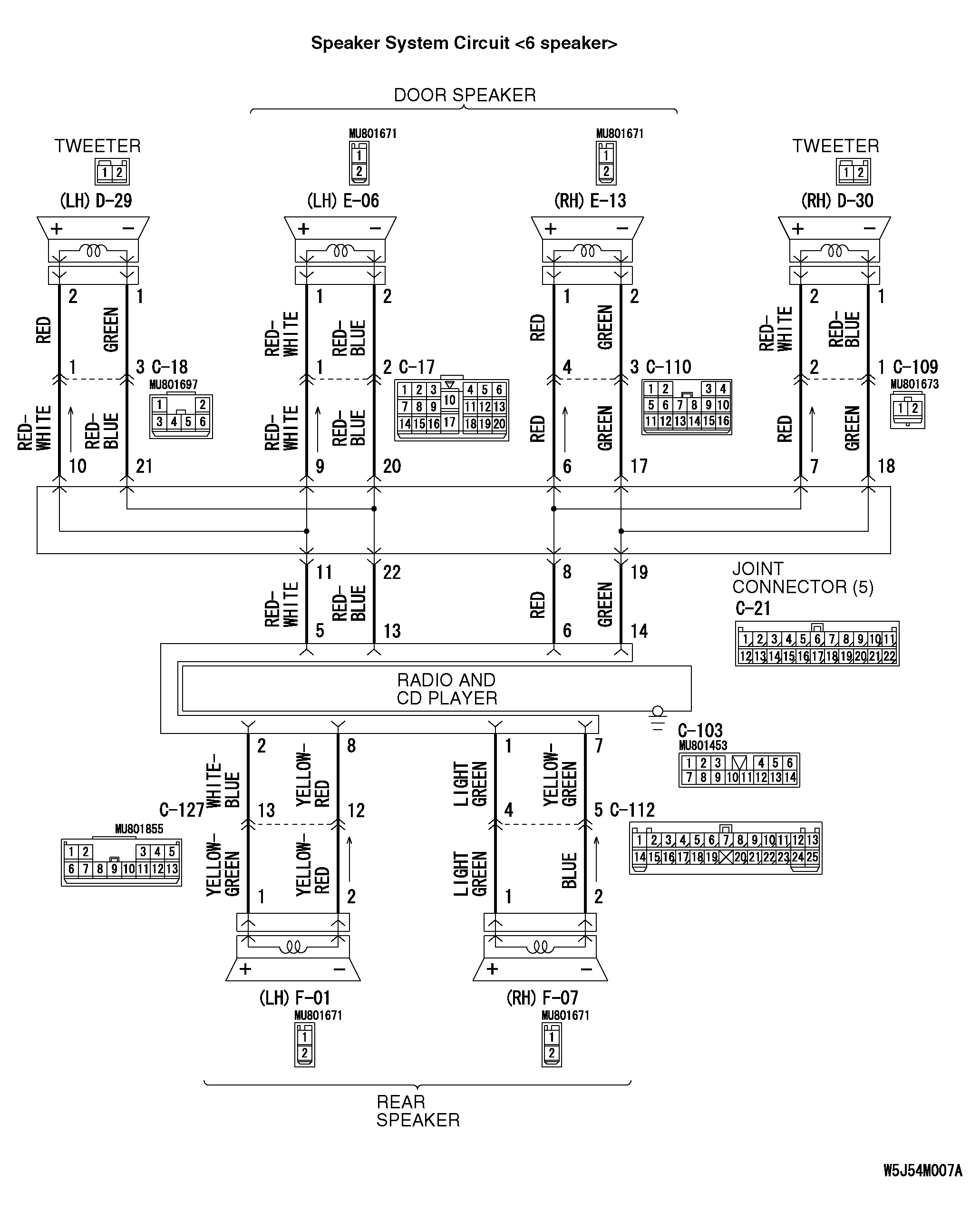

Fig 1: Speaker System Circuit Diagram (6 Speaker)
G04278916Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

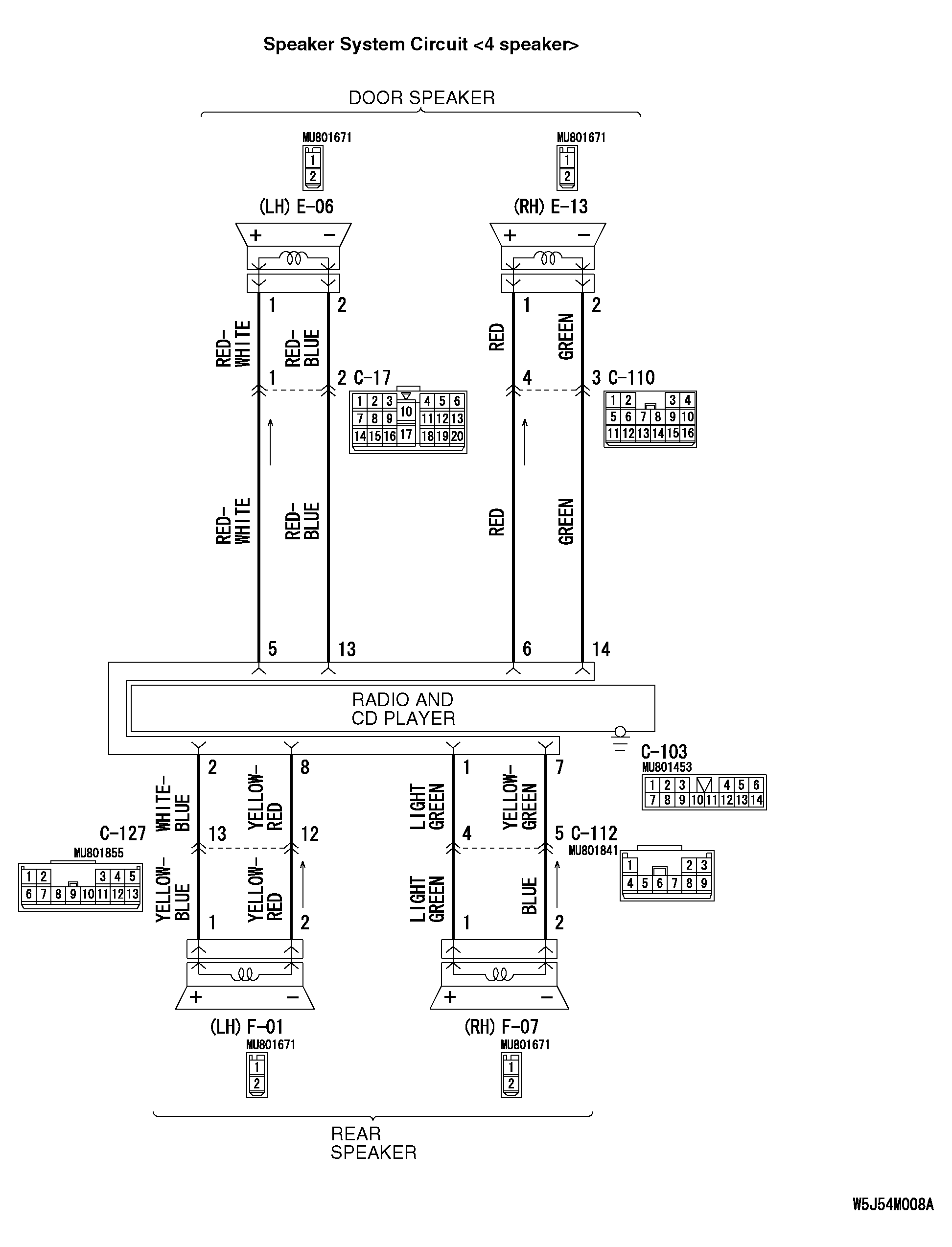

Fig 2: Speaker System Circuit Diagram - 4 Speaker (1 Of 2)
G04278917Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
