INSPECTION PROCEDURE 1: Power of radio and CD player does not turn ON when the ignition switch is in the "ACC" position or "ON" position.: Notes

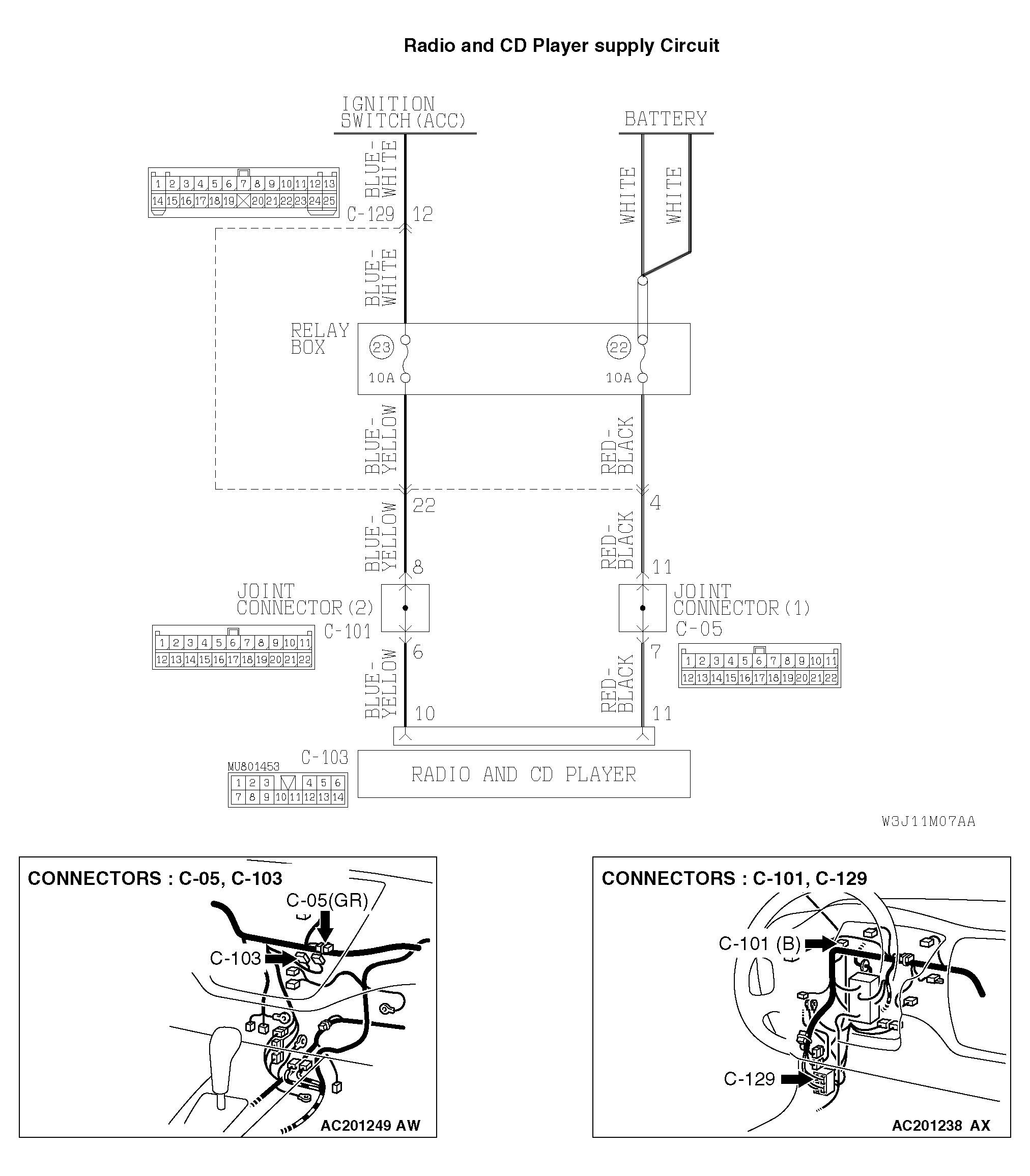

Fig 1: Radio And CD Player Supply - Circuit Diagram
G04278906Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
