INSPECTION PROCEDURE 1: Power of radio and CD player does not turn ON when the ignition switch is in the "ACC" position or "ON" position.: Diagnosis

Required Special Tool:

  1. STEP 1. Check to see that the power turns ON when the power switch is turned ON.
    1. Turn the ignition switch to "ACC" position.
    2. Turn ON the radio and CD player power switch.

    Q: Is it possible to put the radio and CD player power in the "ON" position?

    YES  : Go to  Step 2.

    NO  : Go to  Step 5.

  2. STEP 2. Check radio and CD player connector C-103 for damage.

    Q: Are radio and CD player connector C-103 in good condition?

    YES  : Go to  Step 3.

    NO  : Repair or replace the connector. Refer to HARNESS CONNECTOR INSPECTION . If the power switch is turned on, the radio and CD player should operate normally.

    Fig 1: Identifying Connector C-103 Terminals
    G04278907Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. STEP 3. Check the wiring harness between radio and CD player connector C-103 (terminal 11) and battery.
    Fig 2: Identifying Connector C-103 Terminals
    G04278907Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    NOTE: Also check intermediate connector C-129 and joint connector (1) C-05. If intermediate connector C-129 or joint connector (1) C-05 are damaged, repair or replace the connector as described in HARNESS CONNECTOR INSPECTION .

    Q: Are the wiring harness between radio and CD player connector C-103 (terminal 11) and battery in good condition?

    YES  : Go to  Step 4.

    NO  : Repair the wiring harness. If the power switch is turned on, the radio and CD player should operate normally.

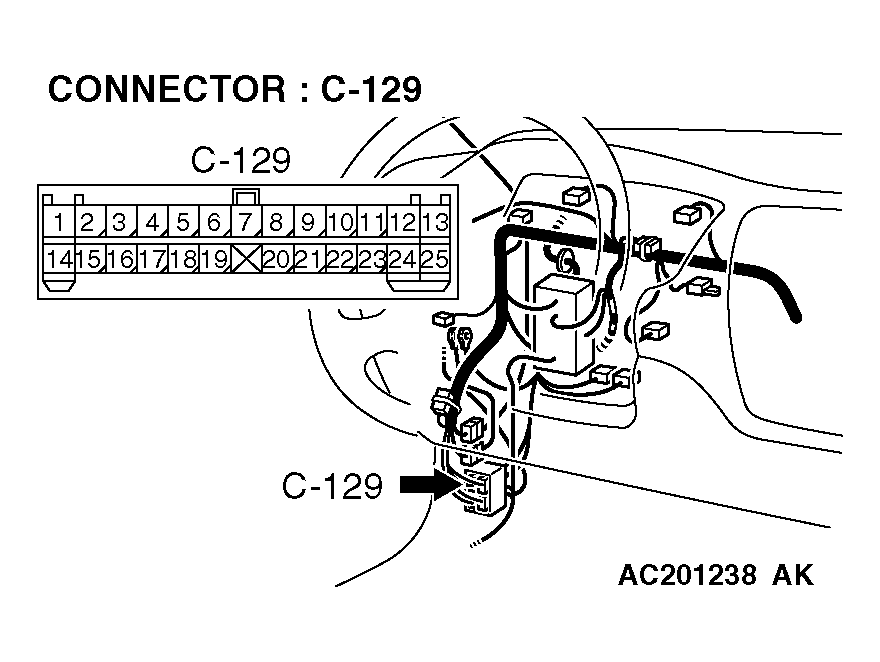

    Fig 3: Identifying Terminals Of Intermediate C-129 Connector
    G04278909Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

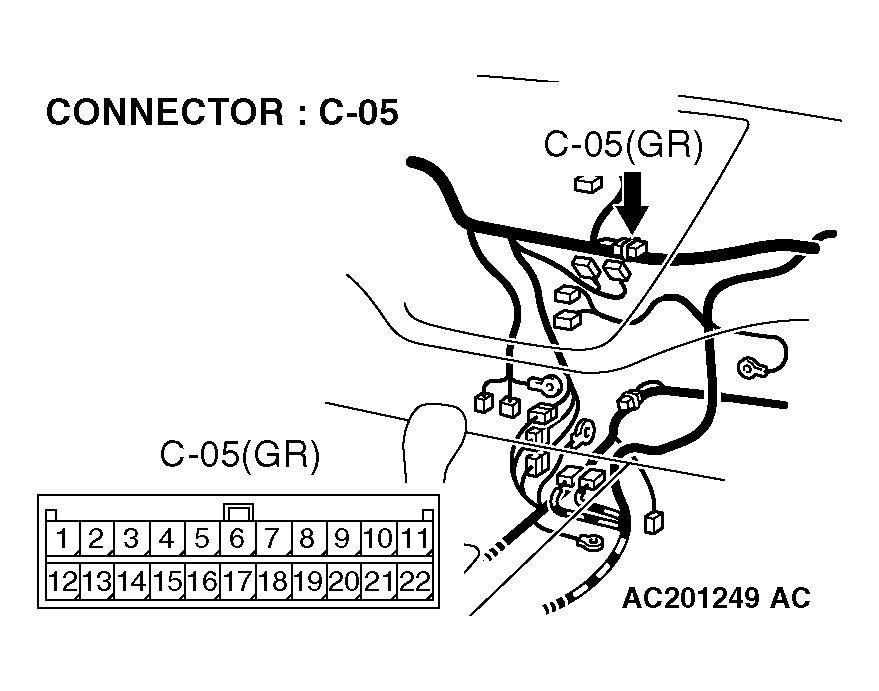

    Fig 4: Identifying Terminals Of C-05 Joint Connector
    G04278910Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  4. STEP 4. Check the assembling state of the radio and CD player.
    NOTE: The radio and CD player are grounded to the instrument panel center reinforcement directly.

    Q: Are the radio and CD player installed correctly?

    YES  : Repair or replace the radio and CD player. If the power switch is turned on, the radio and CD player should operate normally.

    NO  : Install properly. If the power switch is turned on, the radio and CD player should operate normally.

  5. STEP 5. Measure at radio and CD player connector C-103 in order to check the battery circuit of power supply system to the radio and CD player (ignition switch ACC).
    1. Disconnect radio and CD player connector C-103, and measure at the wiring harness side.
    2. Turn the ignition switch to "ACC" position.
      Fig 5: Identifying Connector C-103 Terminals
      G04278907Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    3. Measure the voltage between terminal 10 and ground by backprobing.
      • The measured value should be approximately 12 volts (battery positive voltage).

    Q: Does the measured voltage correspond with this range?

    YES  : Go to  Step 8.

    NO  : Go to  Step 6.

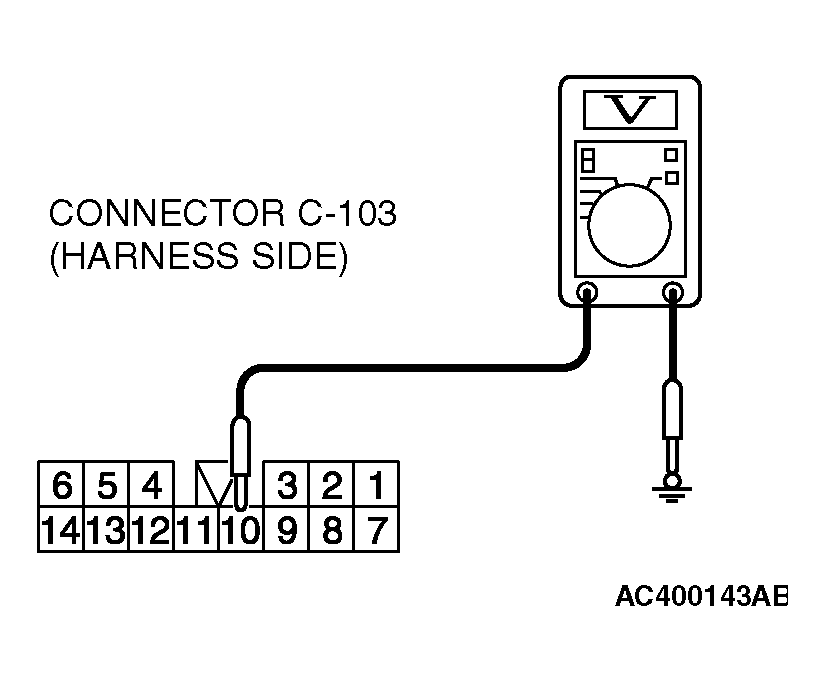

    Fig 6: Measuring Voltage Between Terminal 10 And Ground
    G04278912Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  6. STEP 6. Check radio and CD player connector C-103 for damage.

    Q: Are radio and CD player connector C-103 in good condition?

    YES  : Go to  Step 7.

    NO  : Repair or replace the connector. Refer to HARNESS CONNECTOR INSPECTION . If the power switch is turned on, the radio and CD player should operate normally.

    Fig 7: Identifying Connector C-103 Terminals
    G04278907Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  7. STEP 7. Check the wiring harness between radio and CD player connector C-103 (terminal 10) and ignition switch (ACC).
    Fig 8: Identifying Connector C-103 Terminals
    G04278907Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    NOTE: Also check intermediate connector C-129 and joint connector C-101. If intermediate connector C-129 or joint connector C-101 are damaged, repair or replace the connector as described in HARNESS CONNECTOR INSPECTION .

    Q: Are the wiring harness between radio and CD player connector C-103 (terminal 10) and ignition switch (ACC) in good condition?

    YES  : There is no action to be taken.

    NO  : Repair the wiring harness. If the power switch is turned on, the radio and CD player should operate normally.

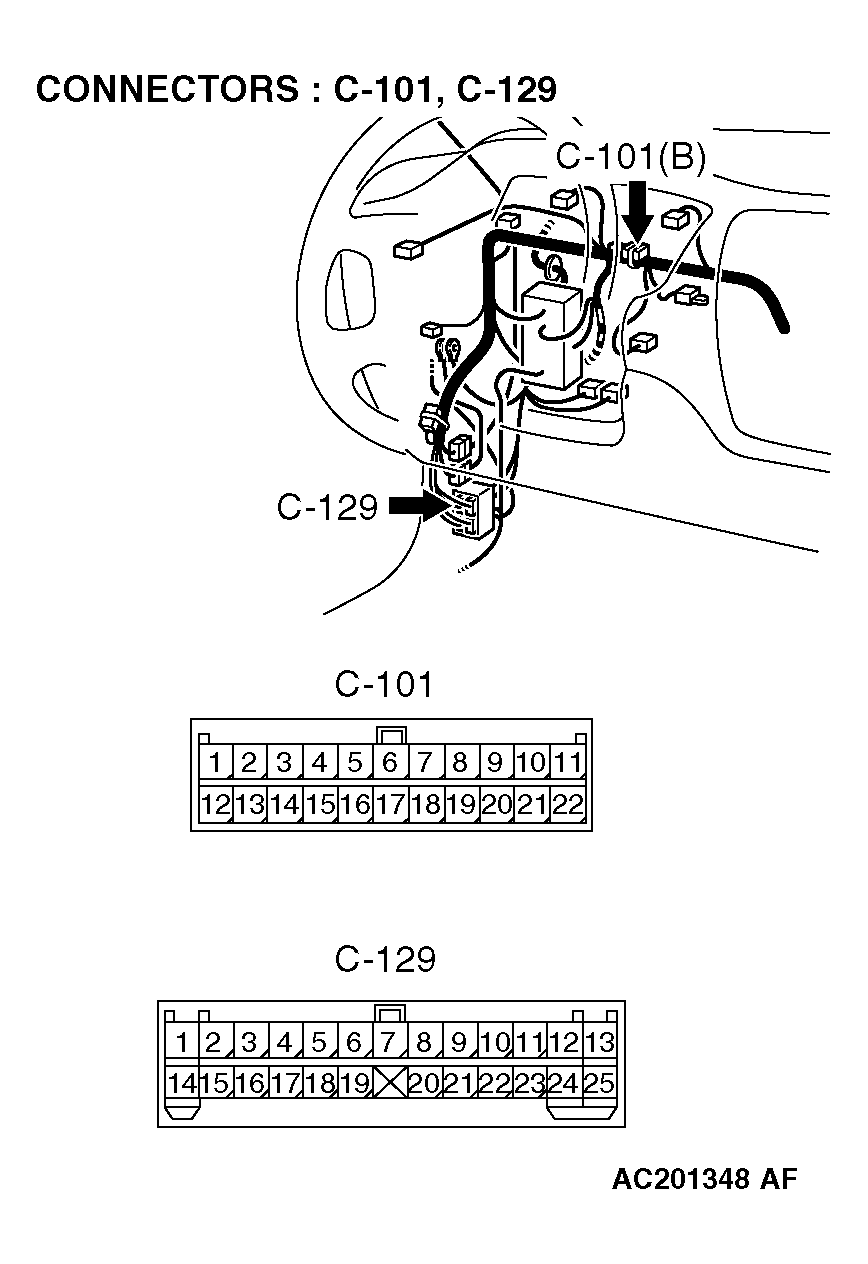

    Fig 9: Identifying Terminals Of C-101 And C-129 Connector
    G04278915Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  8. STEP 8. Check the assembling state of the radio and CD player.
    NOTE: The radio and CD player are grounded to the instrument panel center reinforcement directly.

    Q: Are the radio and CD player installed correctly?

    YES  : Repair or replace the radio and CD player. If the power switch is turned on, the radio and CD player should operate normally.

    NO  : Install properly. If the power switch is turned on, the radio and CD player should operate normally.
