Speaker Test

Enter the speaker test mode according to the following steps:

1. Turn the Ignition switch to the "ACC" or "ON" position and switch off the radio and CD player.
2. Press the following buttons in that order within sixty seconds from step (1).
   1. Memory select "1" button
   2. "TUNE/SEEK (DOWN)" button
   3. "TUNE/SEEK (UP)" button
   4. Memory select "6" button
   Fig 1: Pressing Memory Select "6" Button

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

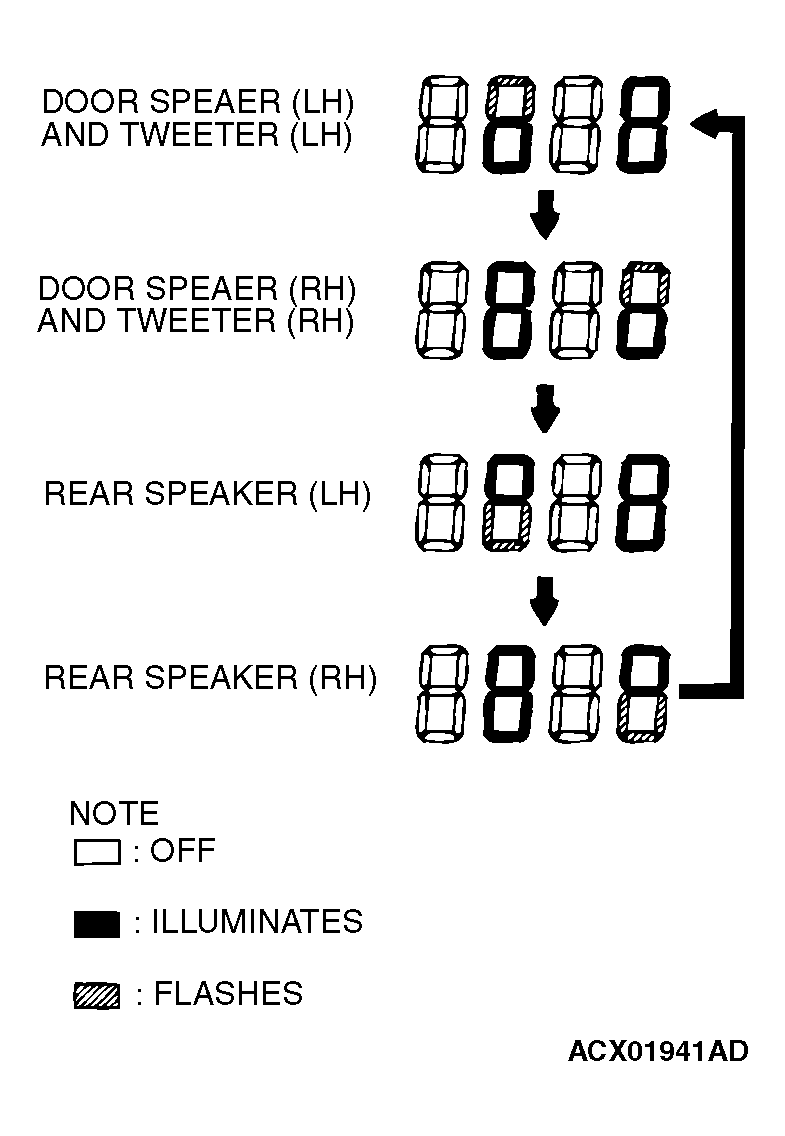

3. Check that the speaker, which is displayed on the multi-center display, sounds (If the memory select "6" button is pressed, the speaker will be changed).
4. If a button other than the memory select "6" button and "EJECT" button is pressed, or the ignition switch is turned to "LOCK" (OFF) position, you will exit from the speaker test mode.

Fig 2: Identifying Multi-Center Display

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
