Headlight Bulb

CAUTION: Do not touch the surface of the bulb with hands or dirty gloves as the bulb may pop after a short time. If the surface does become dirty, clean it with alcohol or thinner, and let it dry thoroughly before installing.
  1. Disconnect the battery.
  2. Disconnect the connector.
  3. Remove the socket cover.
  4. Remove bulb mounting spring to pull out bulb.
  5. After bulb is replaced, properly reconnect connector.

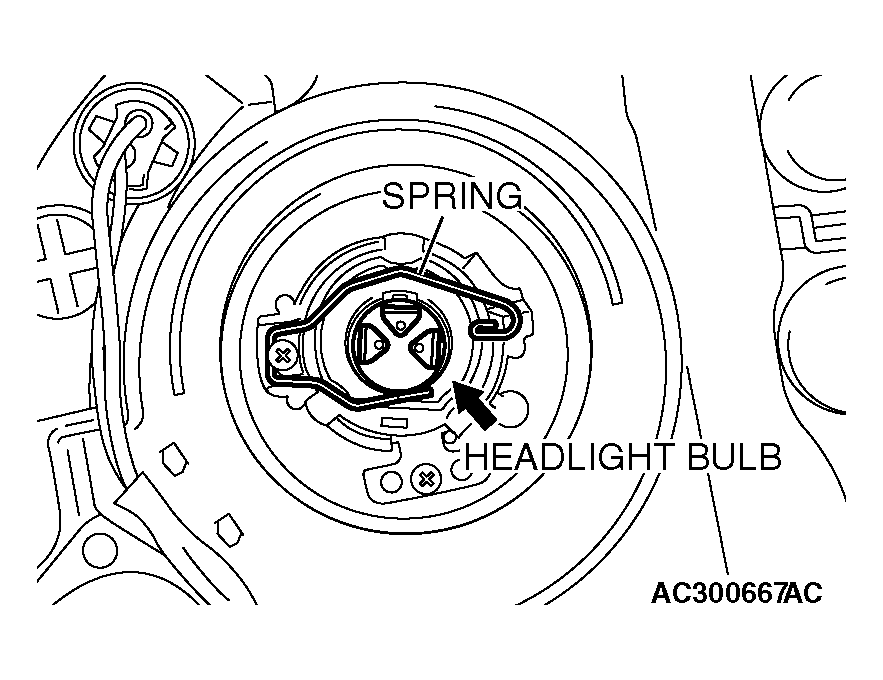

Fig 1: Removing Bulb Mounting Spring
G04278866Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
