Fog Light Relay Check

TESTER CONNECTION SPECIFIED CONNECTION CHART

BATTERY VOLTAGE TESTER CONNECTION SPECIFIED CONDITION
Not supplied 1 - 4 Open circuit
  • Connect terminal 2 to the positive battery terminal
  • Connect terminal 3 to the negative battery terminal
 1 - 4 Less than 2 ohms

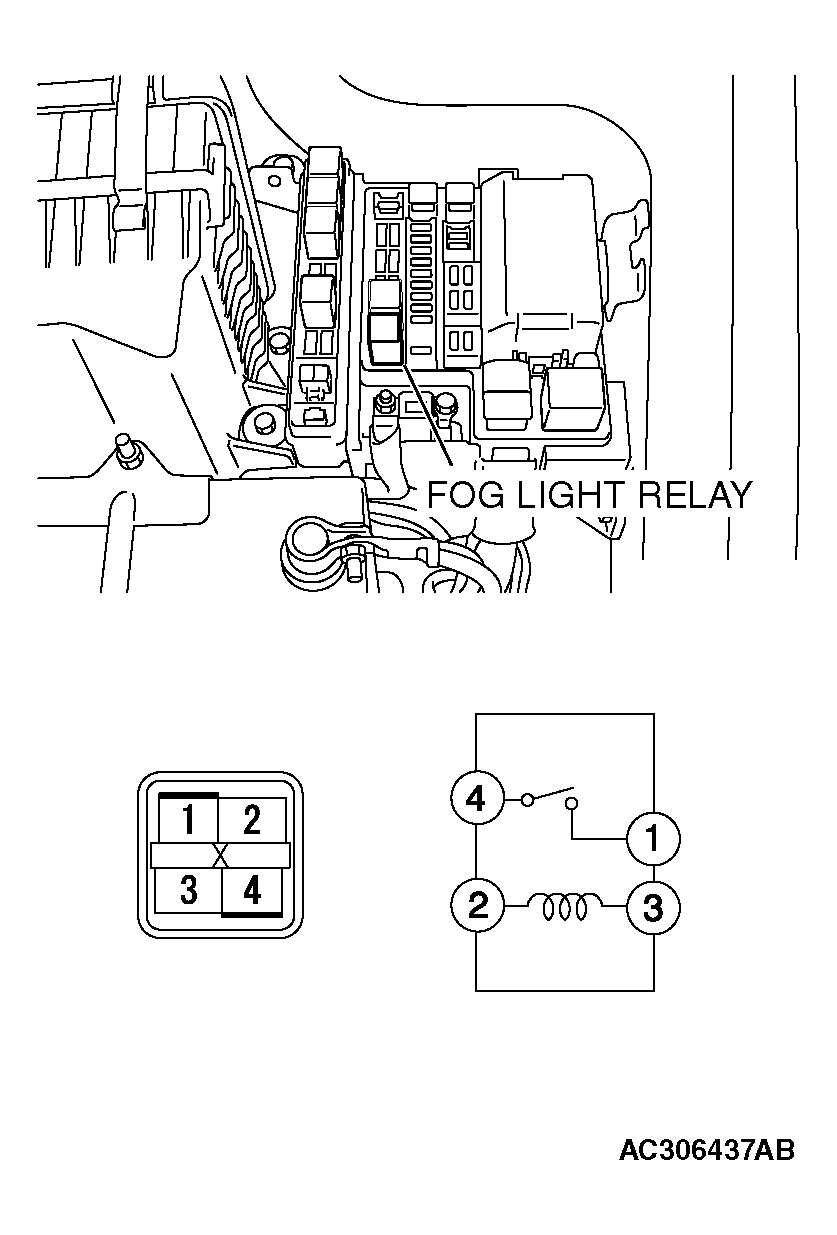

Fig 1: Checking Fog Light Relay
G04278880Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
