INSPECTION PROCEDURE 1: Speedometer does not Work. < A/T >: Notes

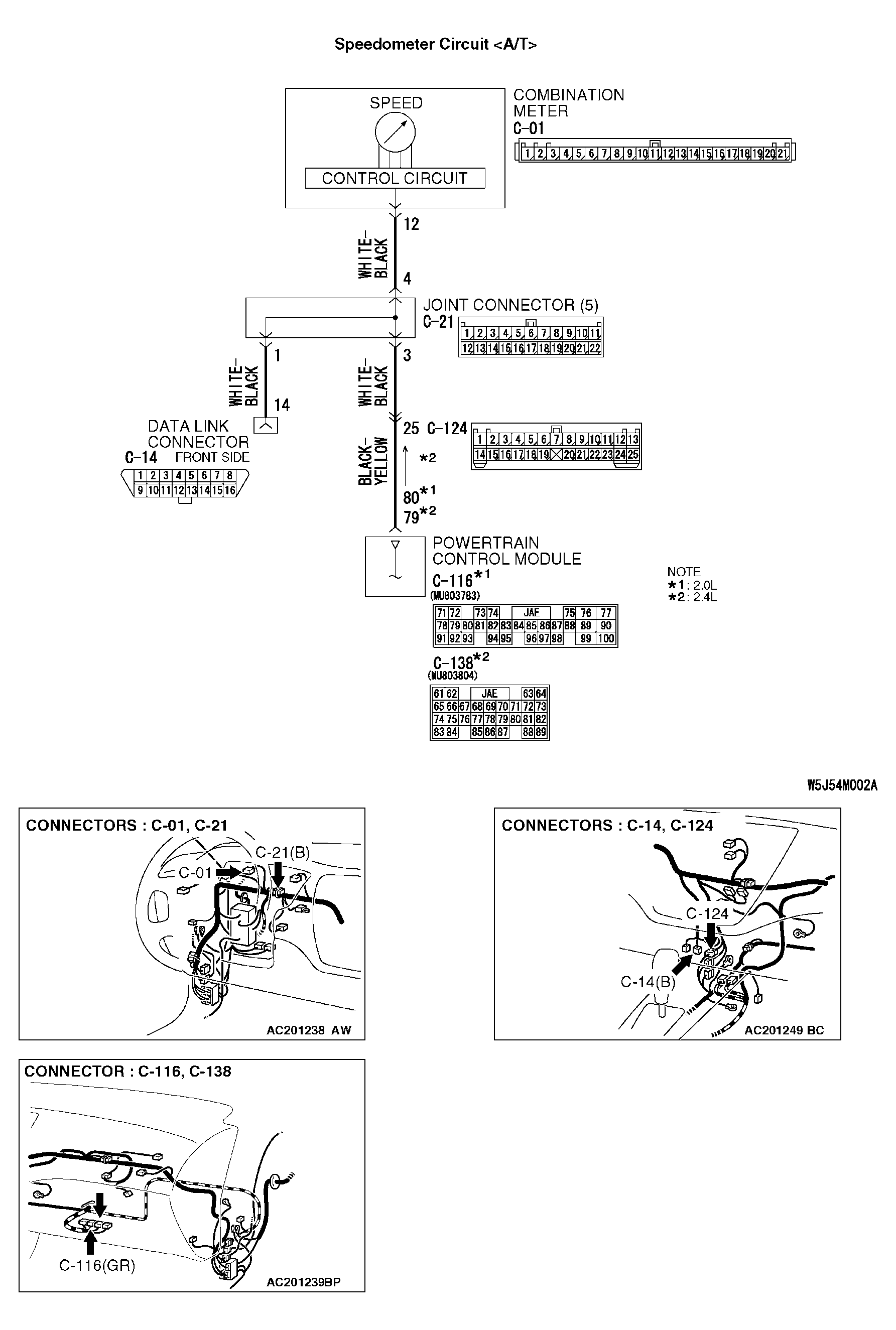

Fig 1: Speedometer (A/T) Circuit Diagram

G04278778

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
