Chassis Electrical - Lancer
>>
Column Switch
>>
Removal And Installation
Removal And Installation

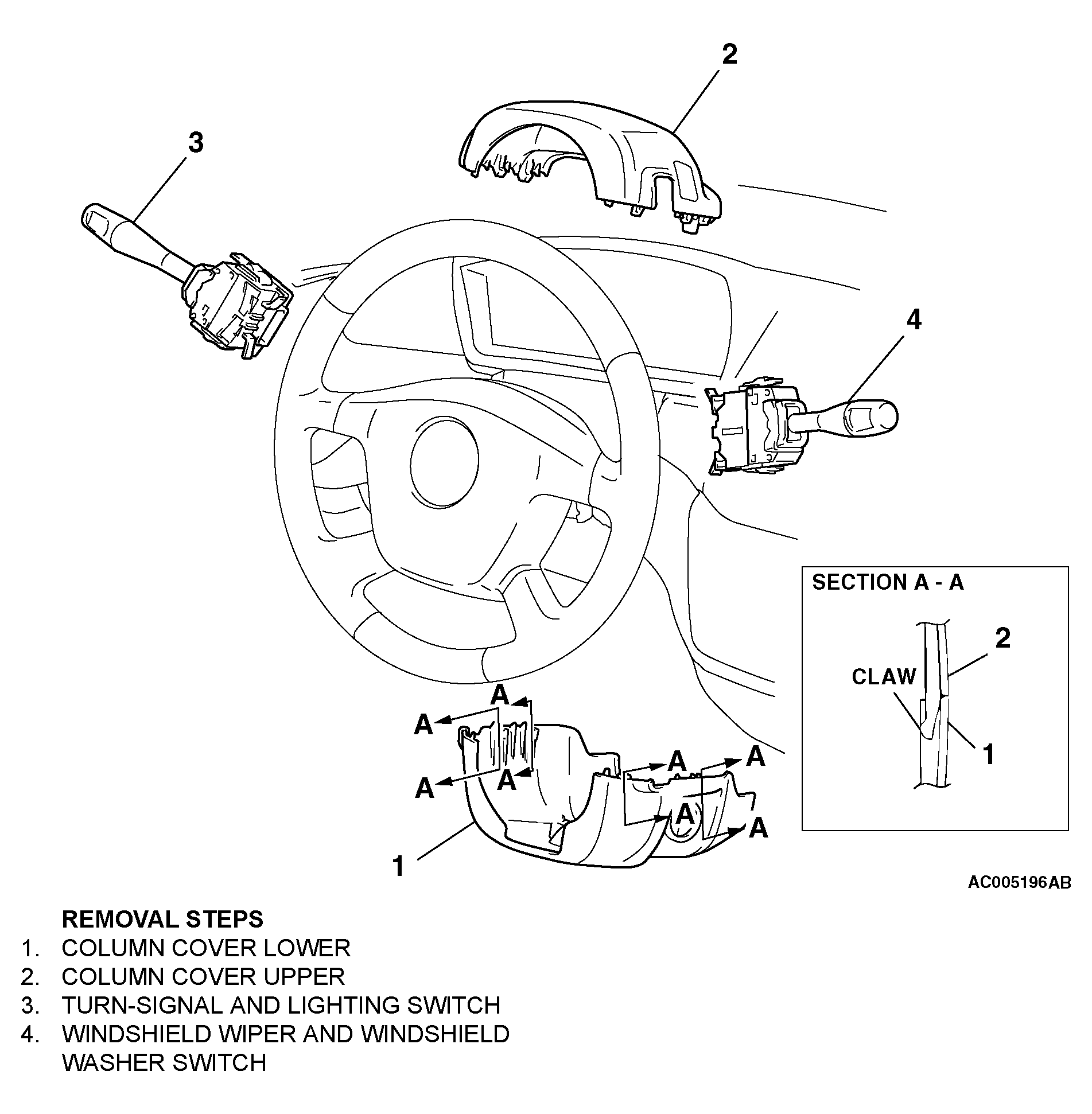

Fig 1: Removing/Installing Column Switch
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Required Special Tool:
MB990784: Ornament remover
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
