>> A << Stabilizer Bar/Stabilizer Bushing/Stabilizer Bar Bracket Installation

  1. Position the stabilizer bar identification paint to the left side.
  2. Adjust the identification paint position as shown in the figure, and tighten the stabilizer bolt.

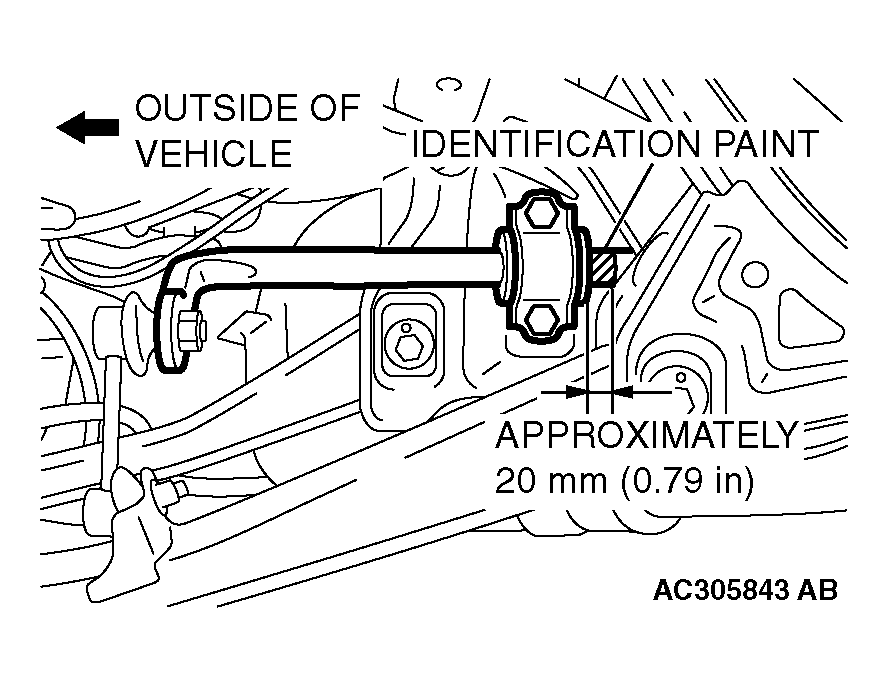

    Fig 1: Installing Stabilizer Bar/Stabilizer Bushing/Stabilizer Bar Bracket
    G04255234Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
