Removal And Installation

CAUTION: *: Indicates parts which should be temporarily tightened, and then fully tightened with the vehicle on the ground in the unladen condition.

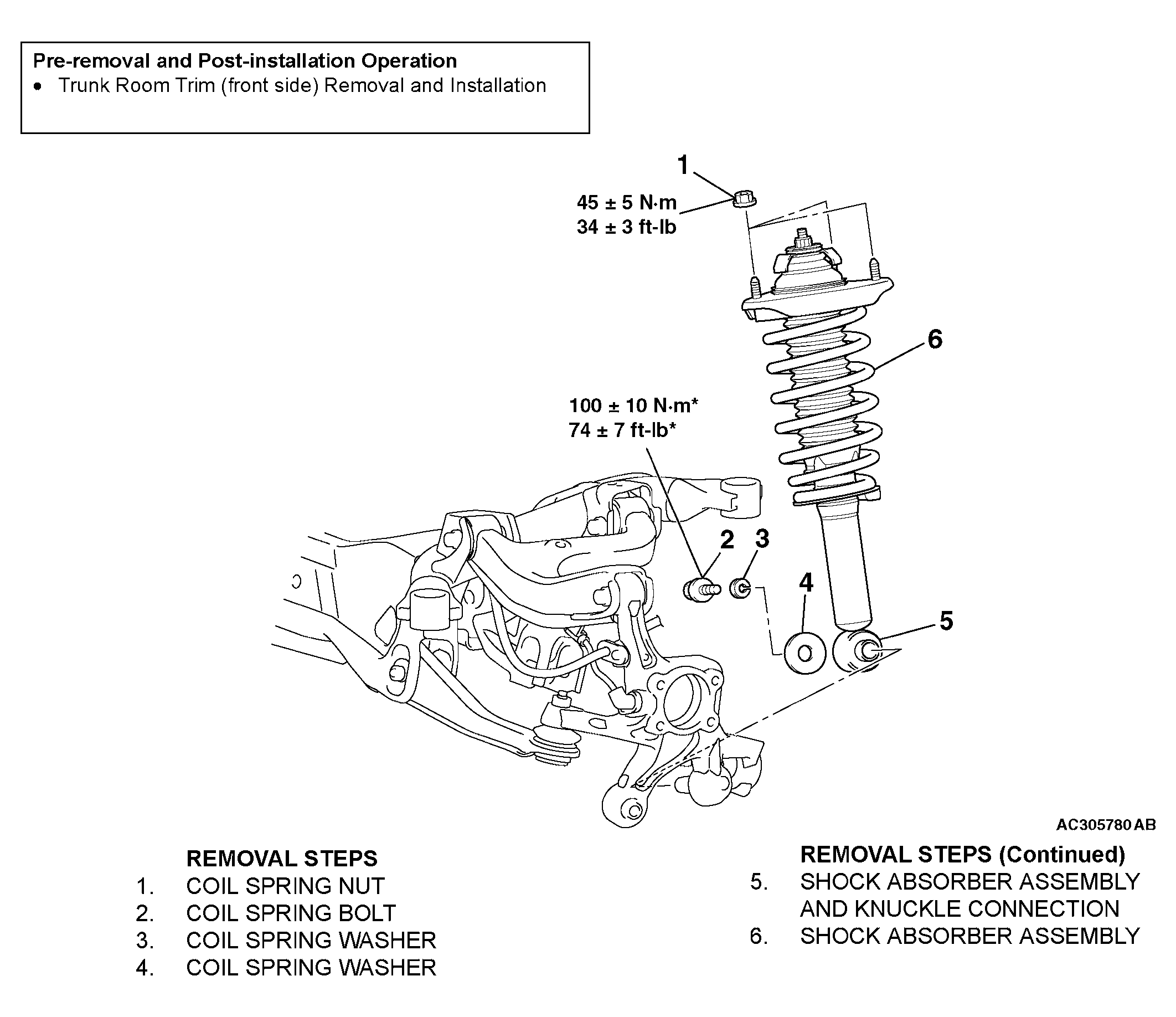

Fig 1: Removing/Installing Shock Absorber Assembly
G04255222Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
