<< D >> CROSSMEMBER Bracket Removal

The crossmember mounting bolts need not be unscrewed when the crossmember bracket is replaced. However, the bolts may be loosened while the crossmember bracket is removed. It is recommended that you retighten the bolts to 110 +/- 15 N.m (81 +/- 11 ft-lb).

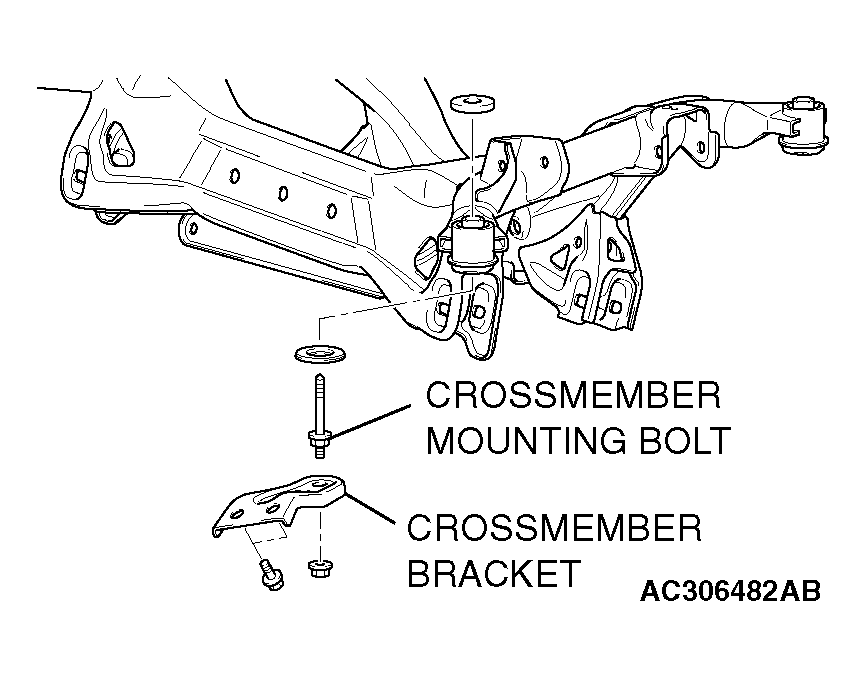

Fig 1: Removing Crossmember Bracket
G04255240Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
