<< C >> CROSSMEMBER Stay (Rear) Removal

The crossmember mounting bolts need not be unscrewed when the crossmember stay is replaced. However, the bolts may be loosened while the crossmember stay is removed. It is recommended that you should retighten the bolts to 110 +/- 15 N.m (81 +/- 11 ft-lb).

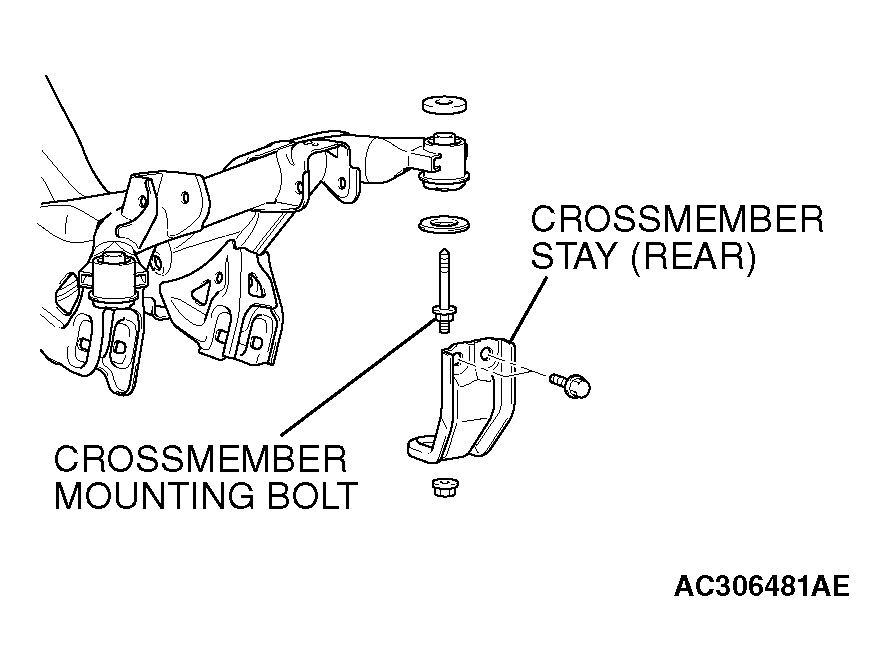

Fig 1: Removing Crossmember Stay (Rear)
G04255239Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
