<< B >> Toe Control Arm Assembly Removal

Disconnect the toe control arm only from its rear suspension crossmember side, and use a cord to tie it to the trailing arm assembly as shown.

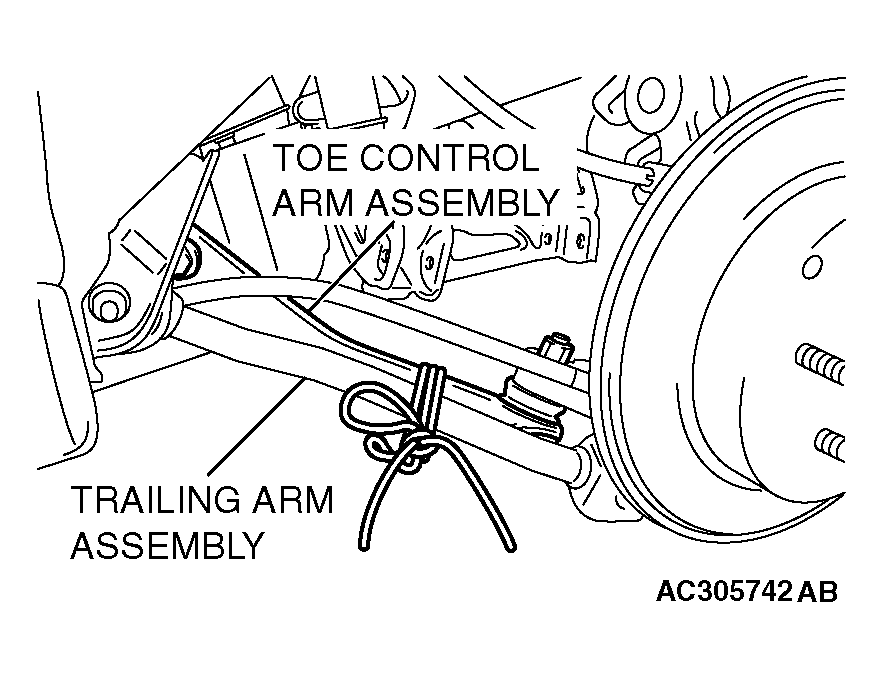

Fig 1: Removing Toe Control Arm Assembly
G04255238Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
