>> C << CROSSMEMBER Stay (Rear)/CROSSMEMBER Nut Installation

Ensure that the crossmember mounting bolts have been tightened to 110 +/- 15 N.m (81 +/- 11 ft-lb), and then install the crossmember stay with the crossmember nut.

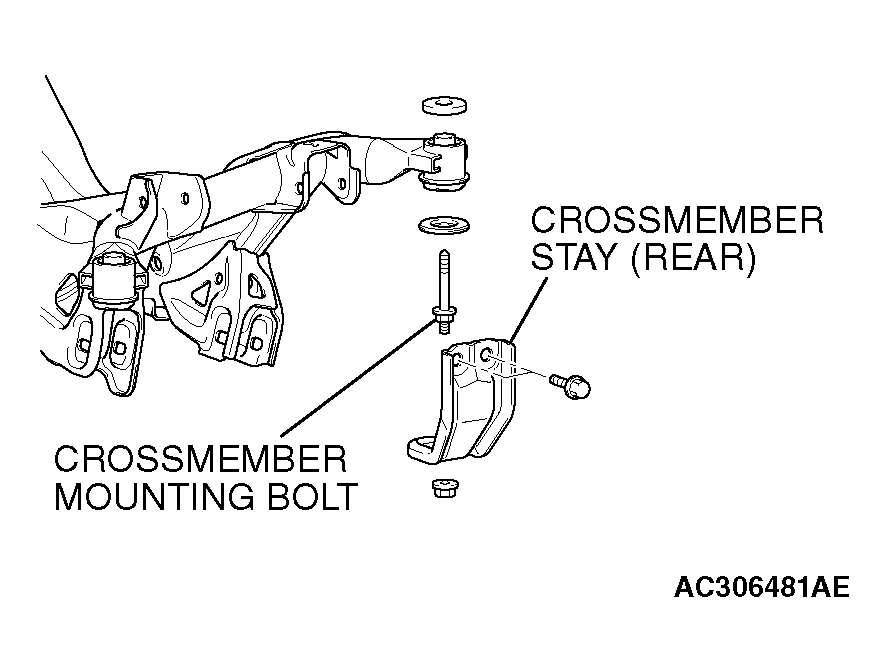

Fig 1: Installing Crossmember Stay (Rear)/Crossmember Nut
G04255243Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
