Rear Wheel Alignment Check And Adjustment: Camber

Standard value:

- 0°50' +/- 0deg;30' (Left/right deviation within 30')

NOTE: For vehicles with aluminum wheels, attach the camber/caster/kingpin gauge by using a compensator.

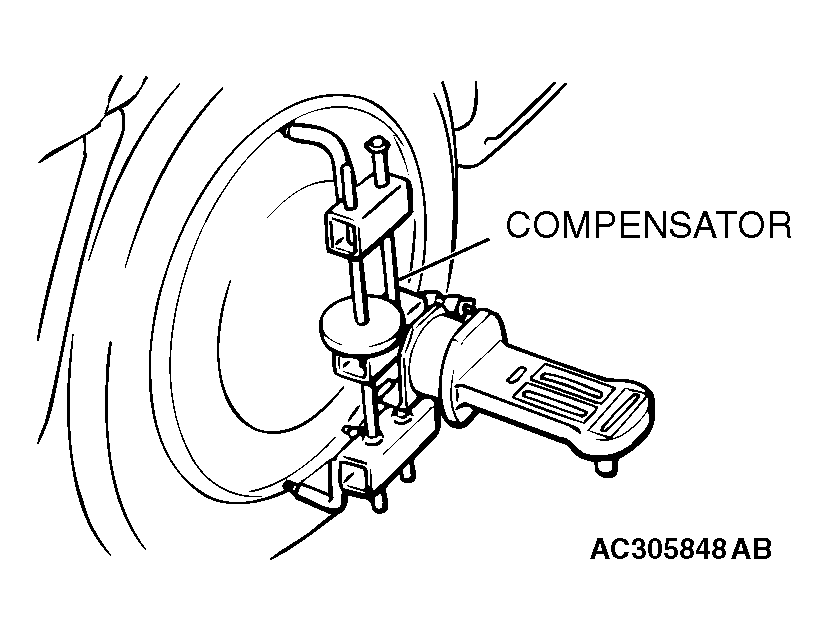

Fig 1: Checking Camber

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
