<< A >> Lower Arm Bolt Removal

Place mating marks on the crossmember and the plate before removing the lower arm bolt.

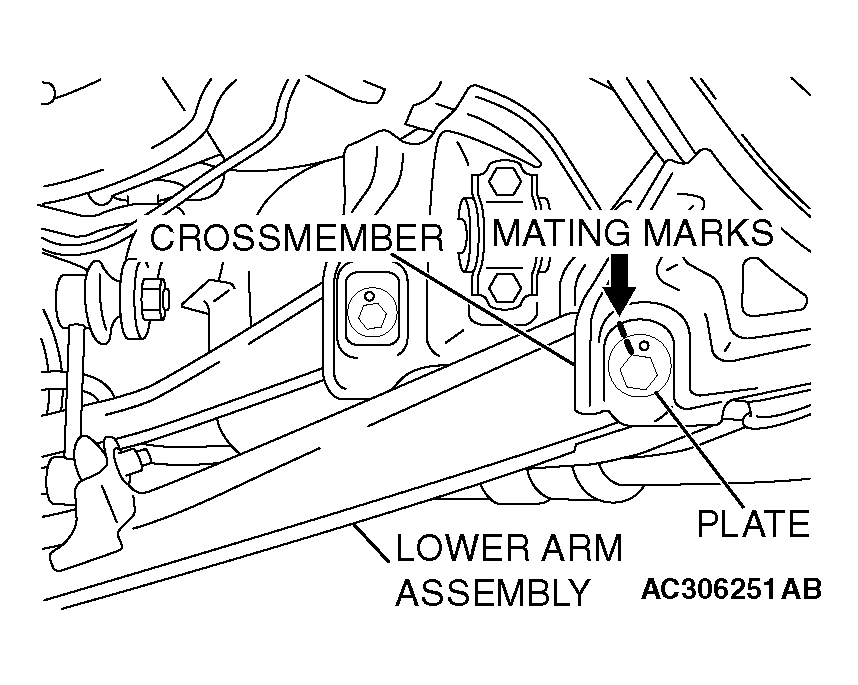

Fig 1: Removing Lower Arm Bolt

G04255213

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
