Simple Inspection Of The A/C Pressure Sensor

  1. Assemble a gauge manifold on the high pressure service valve.
  2. Disconnect the A/C pressure sensor connector and connect special tool test harness MB991658 as shown in the illustration.
  3. Turn ON the engine and then turn ON the air conditioner switch.

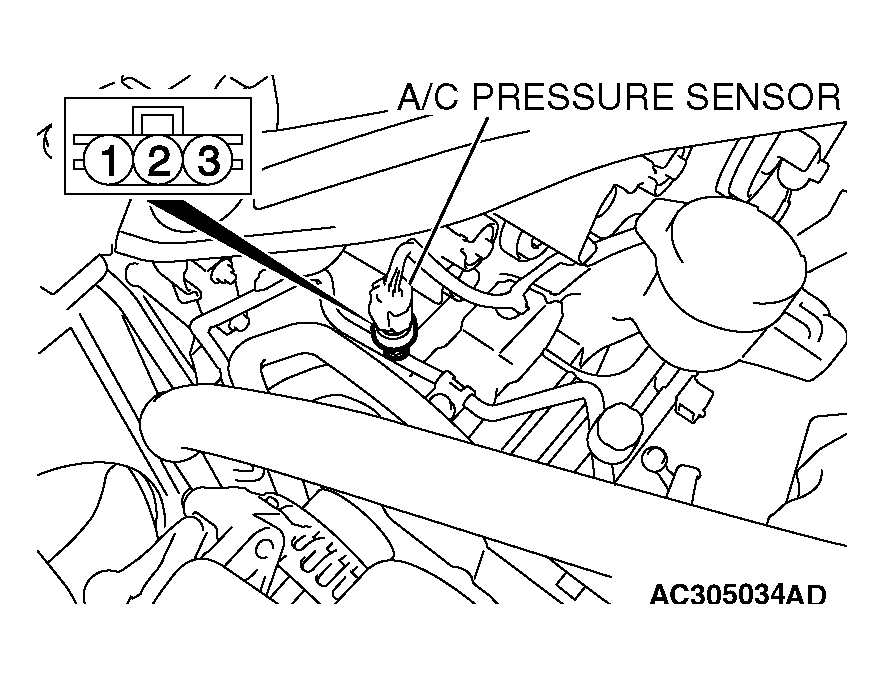

    Fig 1: Disconnecting A/C Pressure Sensor Connector
    G04259814Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

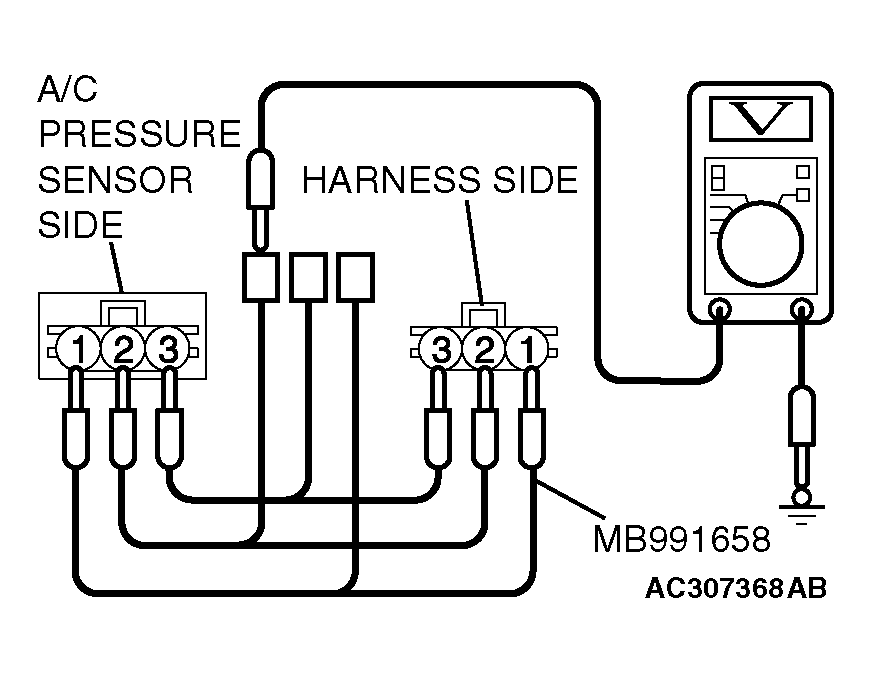

    Fig 2: Connecting Special Tool Test Harness MB991658
    G04240898Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  4. At this time, check to see that the voltage of A/C pressure sensor terminal No. 2 reflects the specifications of the figure.
    NOTE: The allowance shall be defined as +/-5%.
    Fig 3: A/C Pressure Sensor Connector Output Voltage Graph
    G04259704Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
