A/C Compressor Clutch Test

  1. Disconnect the A/C compressor clutch connector to the A/C compressor clutch.
  2. Connect positive battery voltage directly to the connector for the A/C compressor clutch.
  3. If the A/C compressor clutch is normal, there will be a "click." If the pulley and armature do not make contact ("no click"), there is a malfunction.

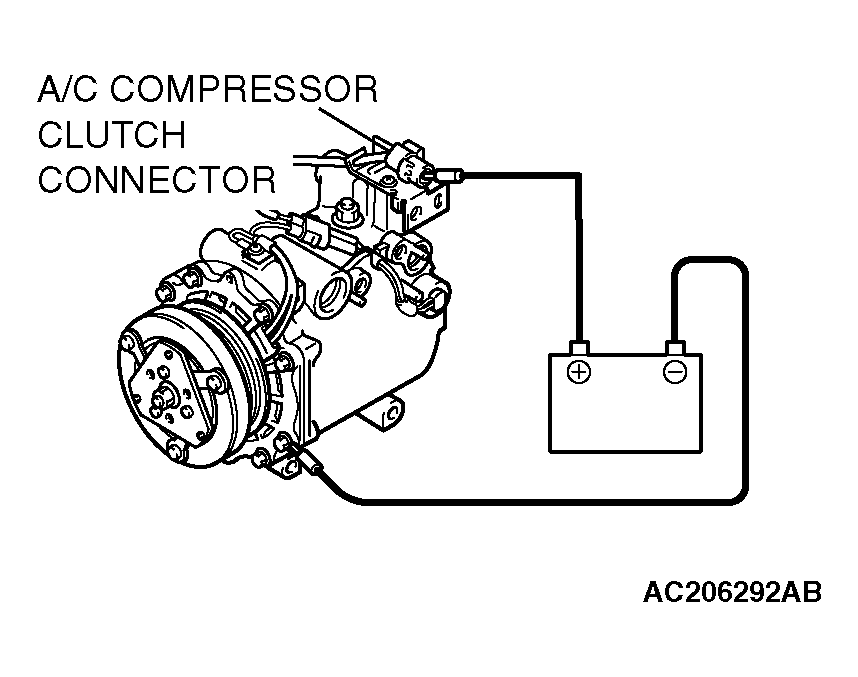

    Fig 1: Locating A/C Compressor Clutch Connector
    G04259843Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
