Removal And Installation

WARNING: When removing and installing the front passenger seat, be sure to carry out accuracy check occupant classification sensor after the seat has been installed in the vehicle. (Refer to ACCURACY CHECK OF OCCUPANT CLASSIFICATION SENSOR ).

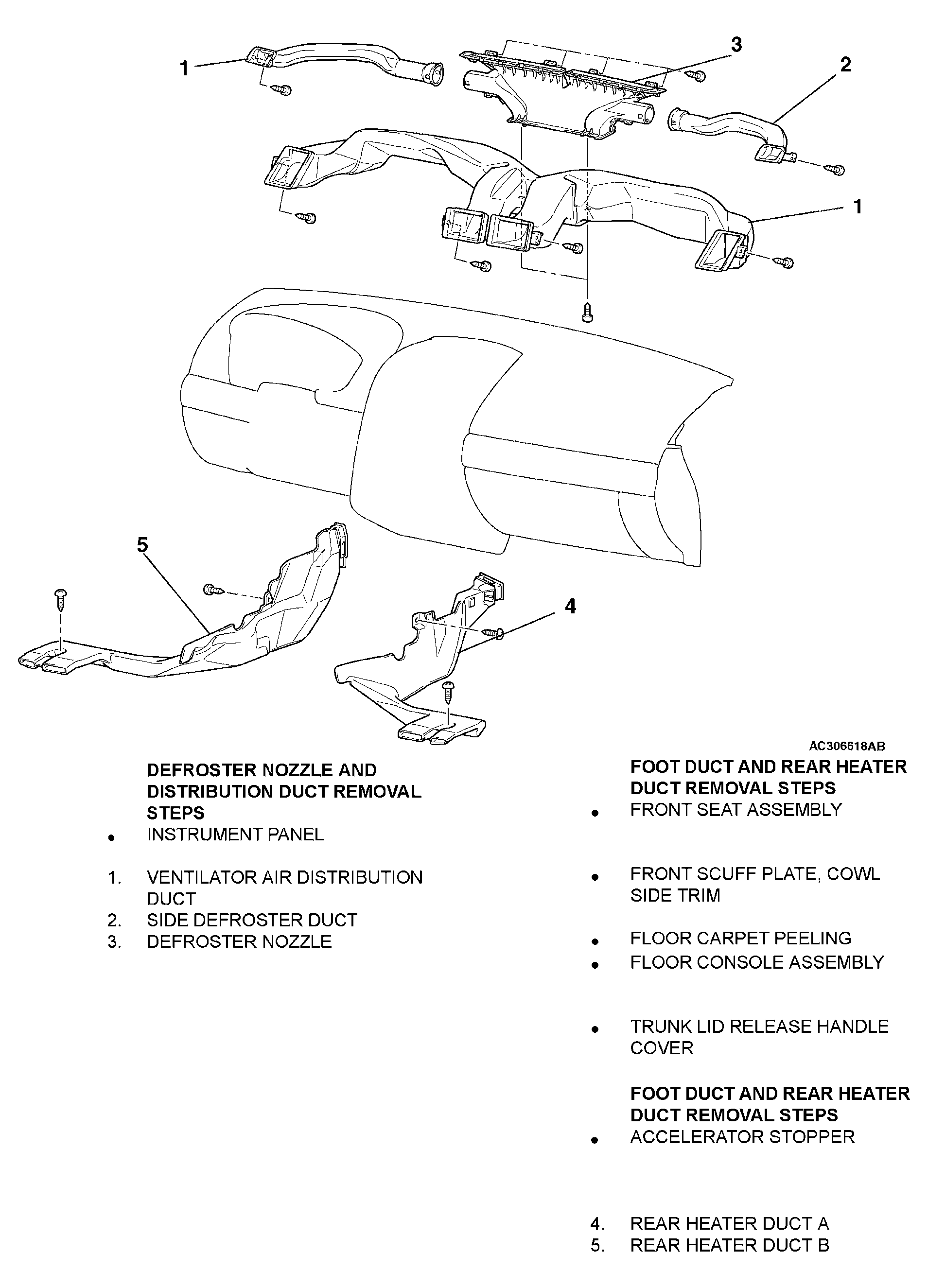

Fig 1: Removing/Installing Ducts
G04259856Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
