>> A << Rear Window Spacer/Glass Stopper/Rear Window Upper Molding/Rear Window Side Molding Installation

WARNING: This page is about a different variant/trim than selected.
CAUTION: Leave the degreased parts for 3 or more minutes to dry well, before starting on the next step. Do not touch the degreased parts.
  1. Use 3M™ AAD Part number 8906 or equivalent. to degrease the inside and outside edges of the rear window glass and the surface of the body flange.

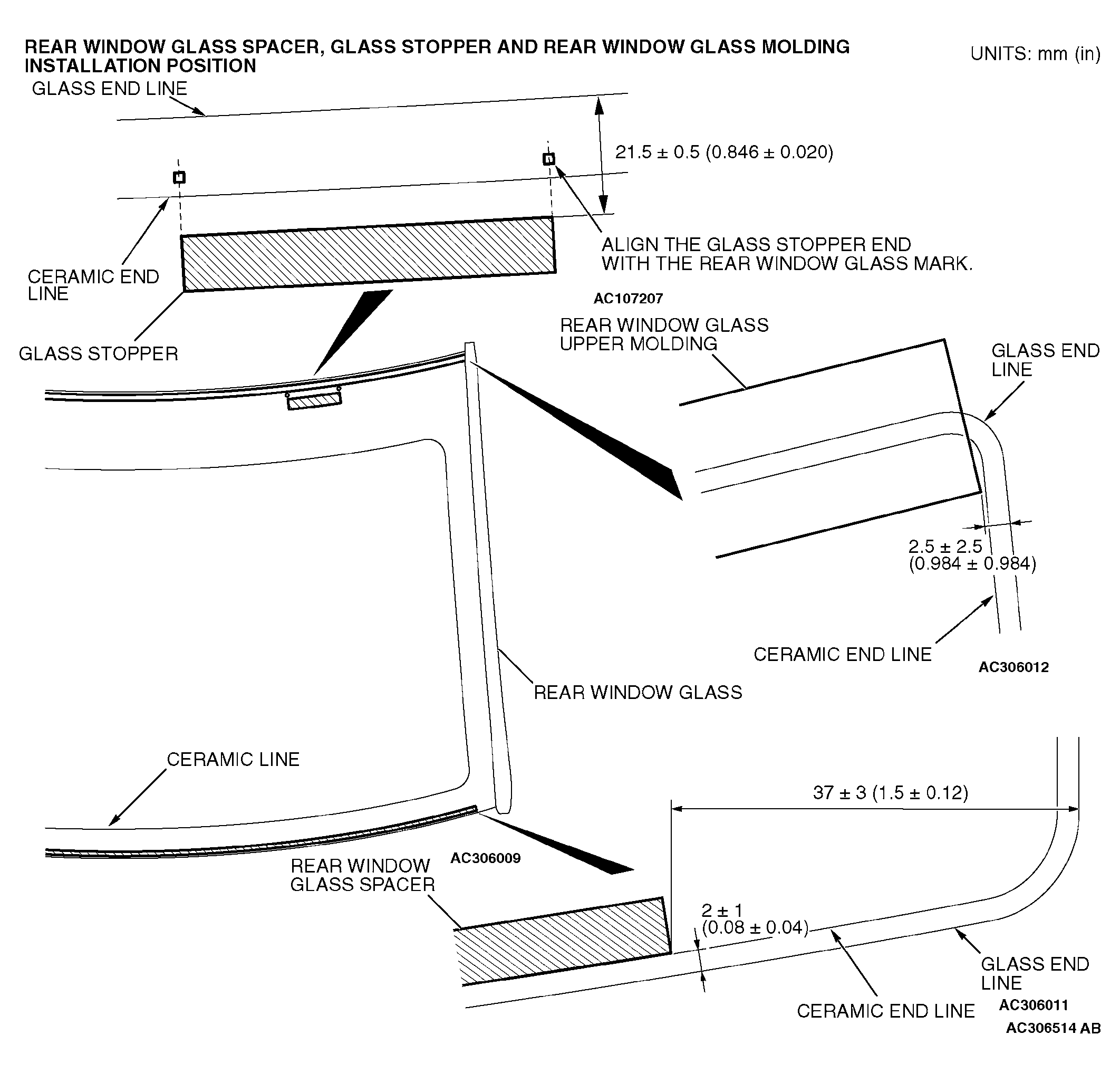

    Fig 1: Identifying Rear Window Spacer/Glass Stopper & Rear Window Glass Molding Installation Positions
    G04255626Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Install the rear window spacer and glass stopper to the specified positions so that there are no adrift or bent surfaces inside the rear window glass.
  3. Install the rear window upper molding and side molding to the rear window glass.
