Section 4 (Body)
>>
Window Glass
>>
General
>>
Window Glass Installation
Window Glass Installation
WARNING:
This page is about a different variant/trim than selected.
CAUTION:
Do not apply the primer on the adhesive remained as the adhesion may be reduced.

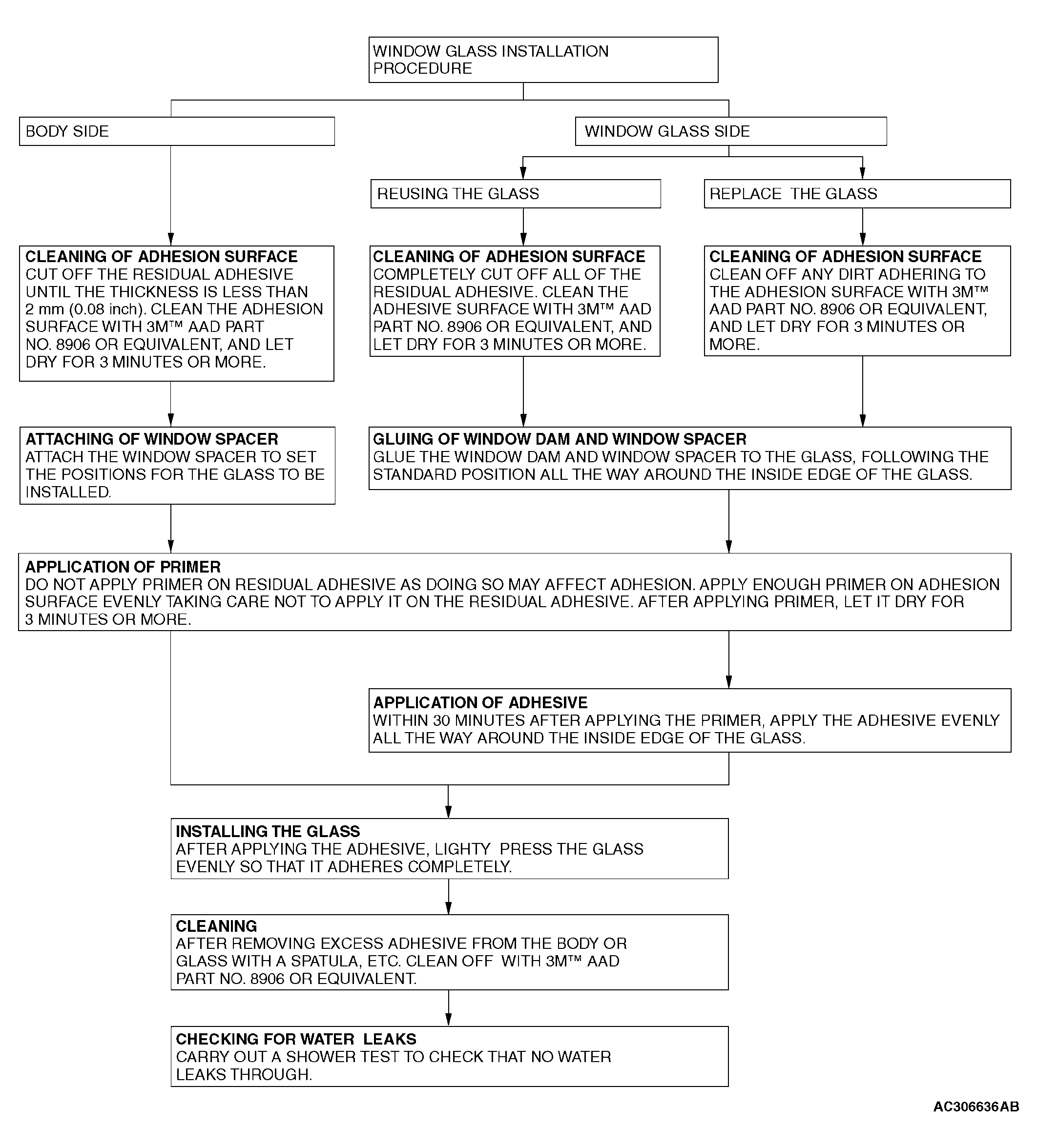

Fig 1: Window Glass Installation Flow Chart
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
