Trunk Lid Latch Adjustment

WARNING: This page is about a different variant/trim than selected.

After checking the trunk lid release cable for proper routing, loosen the trunk lid latch mounting bolts. Change the position of the trunk lid latch relative to the trunk lid striker so that trunk lid locking and unlocking effort is correct.

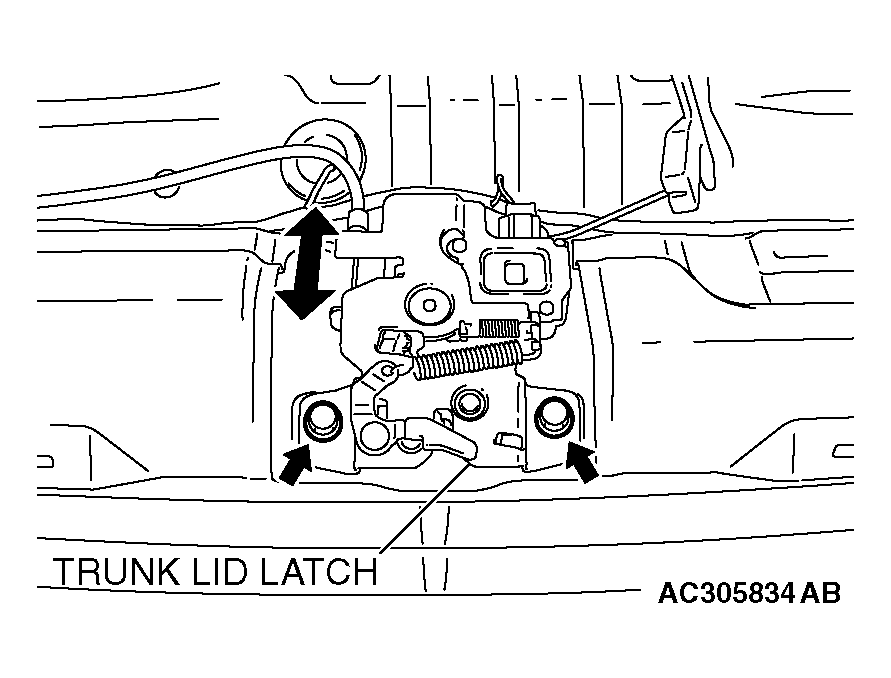

Fig 1: Adjusting Trunk Lid Latch
G04255690Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
