Special Tool

WARNING: This page is about a different variant/trim than selected.
SPECIAL TOOL SPECIFICATION

TOOL TOOL NUMBER AND NAME SUPER SESSION APPLICATION

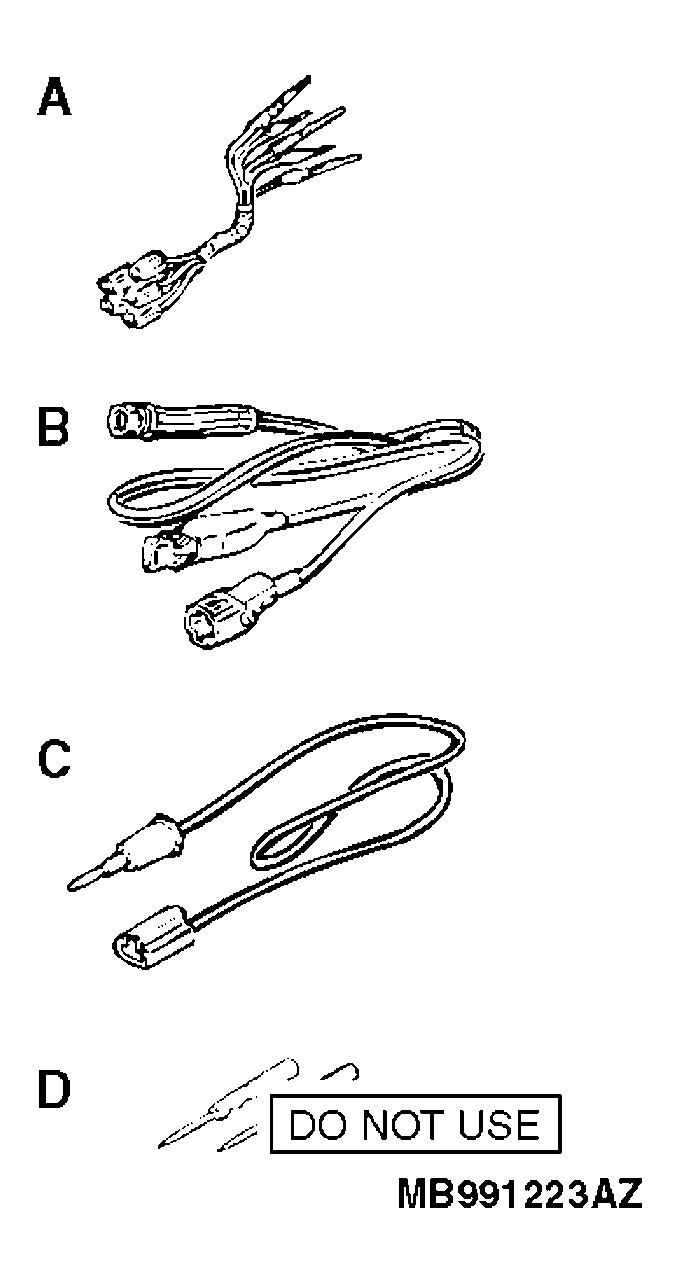

G04255719
 MB991223 Harness set
  1. A: MB991219 Test harness
  2. B: MB991220 LED harness
  3. C: MB991221 LED harness adapter
  4. D: MB991222 Probe
 General service tools Measurement of terminal voltage and resistance
  1. A: Connector pin contact pressure inspection
  2. B: Power circuit inspection
  3. C: Power circuit inspection
  4. D: Commercial tester connection
G04255720
 MB992006 Extra fine probe - Measurement of terminal voltage and resistance
